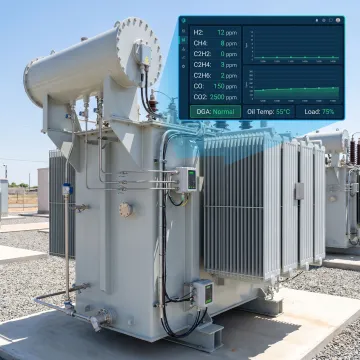

Transformer DGA Monitoring Continuous Gas Analysis

A transformer gas analysis test evaluates gases dissolved in the insulating oil to identify signs of internal faults. Different gases can indicate overheating, arcing, partial discharge, or insulation breakdown. By reviewing gas types, concentrations, and trends over time, maintenance teams can assess transformer condition earlier and plan corrective action before a fault escalates into an outage or major equipment damage.

A transformer DGA test, or dissolved gas analysis test, measures fault gases present in transformer oil. It is one of the most widely used diagnostic methods for assessing transformer health because it can reveal developing electrical and thermal problems while the unit remains in service. DGA supports condition-based maintenance, risk prioritization, and better decisions about inspection, repair, or replacement timing.

Common DGA analysis methods include key gas analysis, gas ratio methods, Duval Triangle interpretation, and trend analysis over time. Each method helps interpret whether gas generation points to overheating, partial discharge, or arcing. In practice, the most reliable assessment often combines laboratory or online measurements with historical trending, operating context, and other condition monitoring data such as temperature or load behavior.

The primary IEC reference for transformer dissolved gas analysis is IEC 60599, which provides guidance on interpreting gases dissolved in mineral oil-filled electrical equipment. It outlines fault-related gas patterns and interpretation principles used by maintenance and reliability teams. Operators often use IEC guidance alongside internal maintenance criteria, OEM recommendations, and complementary monitoring methods to build a more complete transformer health assessment.

Continuous DGA monitoring provides ongoing visibility into gas generation trends rather than isolated snapshots taken during scheduled sampling. That means teams can detect developing faults sooner, receive alarms faster, and respond before conditions worsen. Periodic testing remains useful, but continuous monitoring is especially valuable for critical transformers where unplanned downtime, asset loss, or service interruption would carry significant operational or financial consequences.

Continuous transformer gas analysis can help identify conditions associated with overheating, insulation degradation, partial discharge, and arcing. The exact diagnosis depends on which gases are present, their concentration, and how quickly they are changing. When paired with thermal monitoring and operating data, continuous analysis gives maintenance teams stronger evidence for identifying abnormal behavior and prioritizing intervention on high-risk assets.

Yes. Modern DGA monitoring programs are often integrated with remote dashboards, alarm workflows, and broader condition monitoring platforms. This allows teams to review trends, compare asset behavior, and receive notifications by text, voice, or email when thresholds are exceeded. Centralized visibility is especially useful for utilities and industrial operators managing multiple transformers or geographically distributed electrical assets.

Continuous monitoring is typically recommended for transformers that are critical to operations, expensive to replace, difficult to access, or already showing signs of stress. Units serving substations, industrial plants, data-intensive facilities, or high-load processes often benefit most. If a transformer failure would create major downtime, safety exposure, or costly emergency response, continuous DGA monitoring can provide meaningful risk reduction.
