IP67 Enclosures — Waterproof Electronics Boxes

IP stands for Ingress Protection, a standard defined by IEC 60529. The first digit '6' indicates complete protection against dust ingress, and the second digit '7' indicates protection against temporary submersion in water up to 1 meter depth for 30 minutes. IP67-rated enclosures are considered fully dust-tight and water-resistant for most industrial applications.

IP67 protects against temporary water immersion up to 1 meter for 30 minutes. IP69K provides additional protection against high-pressure, high-temperature water jets — critical for washdown environments such as food processing. MoviTHERM's IP69K enclosures are made from electro-polished stainless steel A316L and meet EHEDG and FDA hygiene standards.

MoviTHERM offers IP67 enclosures compatible with FLIR A40, A50, A70, A400, A500, A700, and GF77a cameras. The Megalodon housing supports cameras with a 62x62mm cross-section or larger. Model selection depends on your specific FLIR camera series — contact MoviTHERM to confirm compatibility before ordering.

IP67 enclosures use 6000-series anodized aluminum with EPDM seals and brass nickel-plated cable glands. IP69K models are constructed from electro-polished stainless steel A316L (Ra <0.8 μm) with FDA-certified EPDM gaskets, offering superior chemical resistance and hygienic compliance for food and pharmaceutical environments.

No. MoviTHERM's enclosures use a Germanium IR window with DLC (outside) and AR (inside) coatings to ensure optimal infrared transmission with minimal impact on radiometric accuracy. The Ge window apertures are sized to match each compatible FLIR camera model, preserving measurement integrity in continuous thermal monitoring applications.

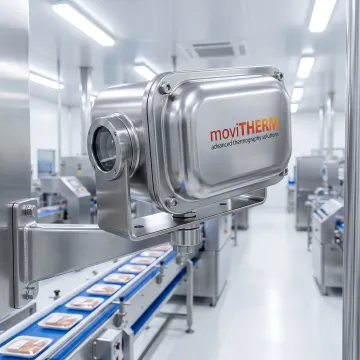

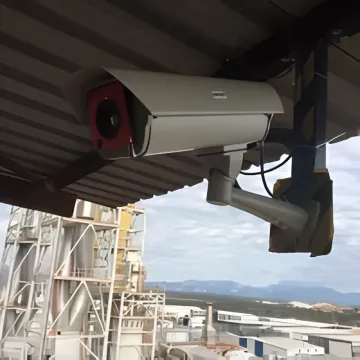

IP67 enclosures from MoviTHERM are used across industrial manufacturing, food and beverage production, power utilities, outdoor surveillance, and process automation. The IP69K variant also serves washdown-intensive environments. Customers include leaders in aerospace, automotive, battery manufacturing, oil and gas, and logistics sectors.
