Current Transformer Monitoring Systems

Current Transformers (CTs) measure electrical current flowing through a conductor, stepping it down to a safe level for metering or protection equipment. Voltage Transformers (VTs), also called Potential Transformers, measure line voltage and scale it down proportionally. Both are critical assets in power distribution, and thermal imaging systems can monitor the surface temperature of both types to detect insulation degradation or overloading.

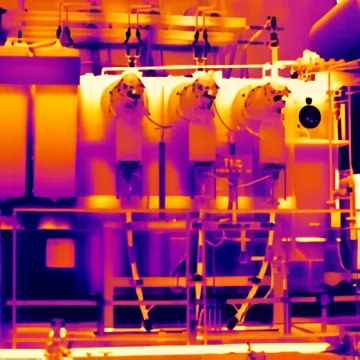

A Current Transformer (CT) works on electromagnetic induction: a primary conductor carries the load current, inducing a proportional secondary current in a wound coil around a magnetic core. This scaled-down secondary current is then measured safely. Thermal imaging complements CT sensors by monitoring radiated heat from the transformer body — a key indicator of internal stress, overloading, or insulation failure.

For most transformer and electrical cabinet monitoring applications, a 320×240 pixel resolution (such as the FLIR A40 or Seek G300) delivers sufficient thermal detail for hot spot detection. For large switchyards or high-value assets requiring precise temperature differentiation, higher resolutions of 464×348 or 640×480 pixels — available in the FLIR A50/A70 or A500/A700 — are recommended.

Yes. MoviTHERM's iTL Cloud Monitoring Solution delivers customizable 24/7 event-based alerts via text message, voice call, email, and dashboard notification the moment an alarm threshold is breached. The iTL Gateway responds locally and independently signals the cloud server, ensuring no alert is missed even during connectivity interruptions.

Yes. All cameras and monitoring solutions support widely adopted industrial protocols including EtherNet/IP, Modbus TCP, MQTT, OPC-UA, Profinet, and RESTful APIs. This enables direct integration into HMI/SCADA systems, PLCs, and cloud IoT platforms without additional middleware, simplifying deployment in existing operational technology environments.

For outdoor substations and exposed environments, an IP66 or IP67 rating is recommended. MoviTHERM's portfolio includes IP66-rated cameras such as the FLIR A40, A50/A70, and A400 series, as well as IP67-rated options like the FLIR AX8, Seek G300, and IRSX. These ratings ensure full protection against dust ingress and high-pressure water jets, making them suitable for harsh outdoor installations.
