Stainless Steel Camera Housings — Outdoor-Ready

IP67 rated enclosures are protected against temporary immersion in water up to 1 meter for 30 minutes and resist dust ingress. IP69K offers a higher level of protection, designed to withstand high-pressure, high-temperature water jets used in industrial washdown processes. The IP69K model is made from electro-polished stainless steel A316L and meets EHEDG hygienic standards.

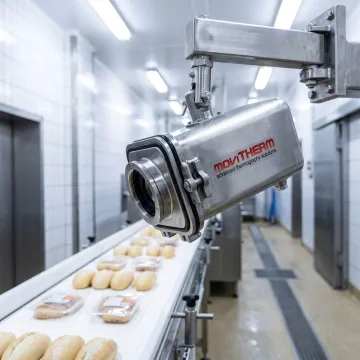

Yes. The IP69K stainless steel housing is specifically designed for food and beverage applications. It is made from electro-polished A316L stainless steel (Ra <0.8 μm surface finish), uses FDA-certified EPDM gaskets and seals, and is EHEDG certified — making it fully compliant with hygienic design standards required in food processing and washdown environments.

No. The housings are engineered specifically to preserve radiometric measurement accuracy. They feature a Germanium IR window with DLC coating on the outside and AR coating on the inside, which ensures optimal infrared transmission. Thermal paste is included in the installation kit to maintain proper thermal contact during installation.

Each housing ships with a complete installation kit that includes a lens tube, camera body, retaining ring, wedge, cable gland, M4 and M3 screws, a syringe with thermal paste, and a quick start guide. This ensures everything needed for a clean, secure installation is included out of the box.

Lead time is 4 weeks from order confirmation. Pricing ranges from approximately $3,500 to $6,000 depending on the model selected (IP67 aluminum, IP69K stainless steel, or IP67 with visual window). Custom and volume pricing is available by contacting MoviTHERM directly at (949) 699-6600 or info@movitherm.com.

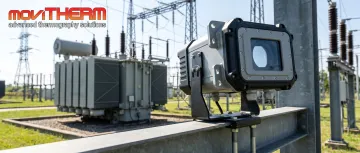

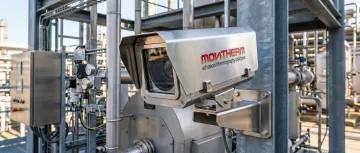

Yes. Both IP67 and IP69K models are designed for outdoor installation, offering robust protection against rain, dust, dirt, and environmental wear. The IP67 aluminum model is suitable for general outdoor use, while the IP69K stainless steel variant is ideal for more demanding environments such as power substations, utility facilities, and outdoor process monitoring installations.
