FLIR A-Series Thermal Smart Sensors

The Smart Sensor configuration performs on-camera edge analytics, outputting measurement results and alarms directly via protocols like Modbus TCP, EtherNet/IP, and MQTT — ideal for IIoT and SCADA integration. The Image Streaming configuration streams full radiometric image data via GigE Vision and RTSP to a host PC or VMS, making it suitable for machine vision and software-based analysis workflows.

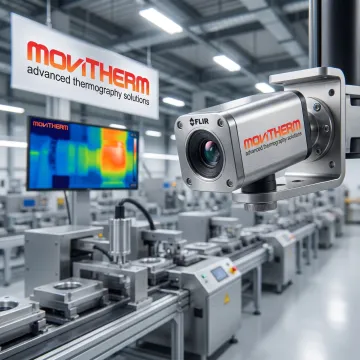

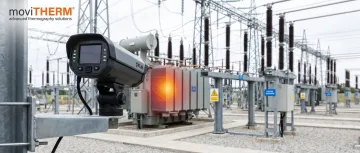

FLIR A-Series sensors are widely used in manufacturing for process monitoring and quality control, energy and utilities for critical infrastructure protection, electronics and semiconductor for component temperature analysis, aerospace and defense for R&D and NDT, and logistics and battery manufacturing for predictive maintenance and early fire detection.

Yes. The Smart Sensor configuration supports EtherNet/IP, Modbus TCP, MQTT, and REST API protocols, enabling direct integration with most industrial HMI and SCADA platforms. Measurement results, alarm states, and temperature data can be read out continuously without requiring an intermediate PC or server.

All FLIR A-Series cameras achieve a measurement accuracy of ±2°C (±3.6°F) or ±2% of the reading, whichever is greater. This applies under standard ambient conditions of 15°C to 35°C with the object temperature above 0°C. Thermal sensitivity (NETD) ranges from <30 mK to <50 mK depending on the lens selected.

The Science Kits are tailored for research and development, laboratory thermal analysis, and non-destructive testing (NDT). They include FLIR Research Studio software for a guided Connect-View-Record-Analyze workflow. The Professional kits add a 5 MP visual camera, MSX® image enhancement, and Wi-Fi radiometric streaming. A Macro Mode lens is included or optional for measuring small components.

Yes. All A-Series models support optional Wi-Fi via a female RP-SMA connector, compliant with IEEE 802.11a/b/g/n. The Advanced configuration additionally supports compressed radiometric streaming that reduces bandwidth by up to 90%, making wireless data transmission practical even for high-resolution radiometric streams without additional network infrastructure.
