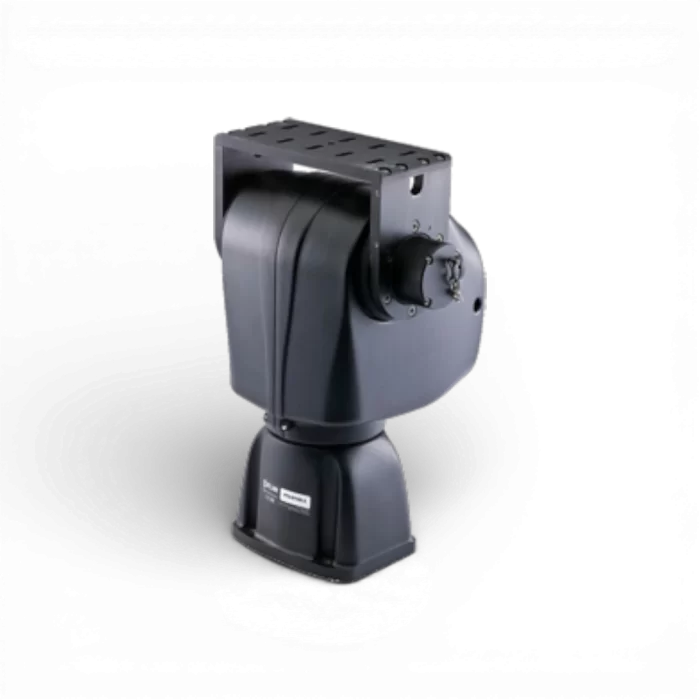

FLIR PTU D100EX for Payloads up to 25 Lbs
FLIR PTU D100EX for Payloads up to 25 Lbs
Price range: $10,390.00 through $16,895.00
Guaranteed safe & secure checkout
*We also accept ACH/wire transfer, checks, and purchase orders.
The PTU D100 EX E-Series (PTU D100E EX) is designed for high-speed, accurate positioning of camera laser, antenna, or other payloads up to 25 lbs. or more. It includes larger motors and higher tilt gear ration for heavier top-mounted payloads.
The integrated controller includes Ethernet connectivity, programmable ranges of motion, and improved motion control fidelity. It is fully weatherized, vibration tolerant offers mil-style connectors for outdoor fixed and mobile applications. Payload braketing options include top mount, or dual-side mount.
Highlights:
- Payloads to 25 lbs (top or side mount)
- Integrated slip-ring for 360-continuous pan rotation (optional)
- Small form-factor
- Tilt position resolution down to 0.0075°
- Pan/tilt speeds up to 120° / Sec.
- Wide range DC voltage input
- Integrated Ethernet
- Programmable ranges of motion
Documentation
Specifications
| Pan-Tilt Unit D100E EX Specifications | ||
|---|---|---|
| Max Payload Weight (nominal) | 25 lbs (side mount) | |
| Position Resolution (°)* | 0.0075° | |
| Min Pan Speed | 0.0075° / Sec. | |
| Max Pan Speed | 60° / Sec. | |
| Min Tilt Speed | 0.0075 °/ Sec. | |
| Max Tilt Speed | 50° / Sec. | |
| Pan Range | Nx360-continuous (with optional slip-ring) | |
| Tilt Range | -30°/+90° | |
| Weight | 20.2 lbs | |
| Height | 13.63″ (with top bracket) | |
| Operating Voltage | 12-30VDC | |
| Environmental | IP67 | |
| Operating Temperature | -30°C to +70°C | |
* Pan-tilts support 1/2, 1/4, and 1/8 microstep modes as well as autostep mode, all software configurable. Quoted resolutions are for 1/8 step mode. Firmware default is 1/2 step. Torque and speeds are somewhat reduced at 1/4 and 1/8 step modes.
Description
The PTU D100E EX mid-range computer-controlled pan-tilt is designed for precise positioning of payloads to 25 lbs. It offers an off-the-shelf solution for positioning cameras, lasers, antennas, or other payload for both fixed and mobile applications. It includes an integrated slip-ring for continuous pan-rotation applications.
The E Series Models offer integral Ethernet/web interface, programmable ranges of motion, and improved motion control fidelity.
The controller is fully integrated. A single mil-style connector provides power and pan-tilt control, as well as payload signal management (optional).
The built-in command set offers both ASCII and binary formats. This command set supports real-time control at up to 60 commands/second with very low and predictable latencies. The rich command set provides fine-grained control of position (absolute and relative), velocity, acceleration and other unit functions. The optional Geo-Pointing Module also provides an Ethernet/IP interface for control of the pan-tilt units.
FLIR PTU-D100E Model Family
The PTU-D100E model family of mid-sized computer-controlled pan-tilts are designed for a wide range of outdoor fixed and mobile applications. They are compact, light weight (18.5 lbs), and rugged and offer an off-the-shelf solution for positioning of any type of small sensor or other payload. The E Series models offer integral Ethernet/web interface, programmable ranges of motion, and improved motion control fidelity.
The PTU-D100E models utilize stepper motors with an asymmetrical worm-gear design. The body of the pan-tilt is constructed from machined aluminum and provides very rigid, repeatable positioning. The controller is fully integrated and the units provide a single weatherized mil-style connector for power, pan-tilt and payload signals. Payloads can be mounted on the sides and/or top (multiple bracket configurations available).
The inertial stabilization module (ISM ) configuration uses an integrated gyro to actively control the pan-tilt to maintain the current pointing angle. This provides for improved camera images and communications links to be maintained from moving platforms including ground vehicles, boats, and aircraft. A real-time control interface is available through the ISM to support user joystick control, tracking and other applications in stabilized mode.
The built-in command set offers both ASCII and binary formats. This command set supports real-time control at up to 60 commands/second with very low and predictable latencies. The rich command set provides fine-grained control of position (absolute and relative), velocity, acceleration and other unit functions. Geo-pointing allows units to be aimed with a latitude, longitude, altitude location. Geo-pointing is built into all E-Series models.
