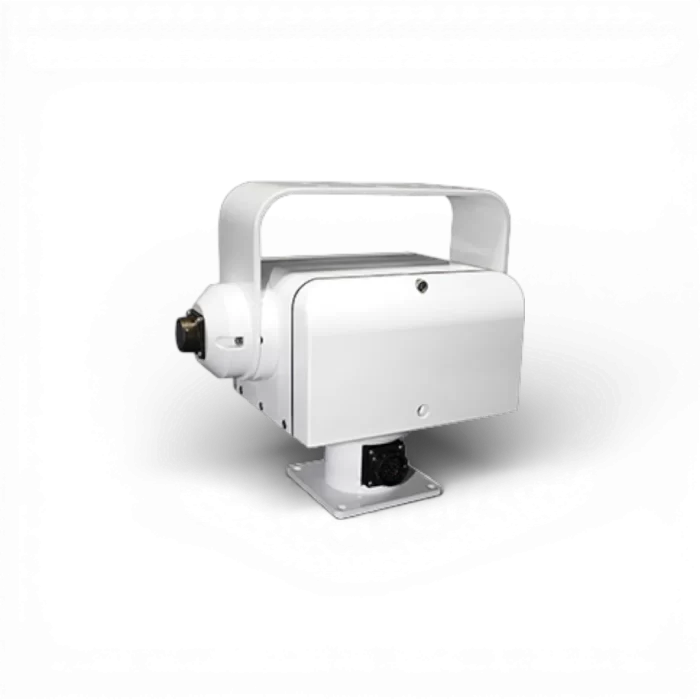

Quickset QPT-20 Pan and Tilt Positioner for Payload Capacity up to 30 lbs
Quickset QPT-20 Pan and Tilt Positioner for Payload Capacity up to 30 lbs
Guaranteed safe & secure checkout
*We also accept ACH/wire transfer, checks, and purchase orders.
Key Features
- Payloads up to 20 lbs-ft. (27.1 Nm) on stepper motor models, 8 lbs-ft. (10.8 Nm) on brush motor models
- Analog driven or Digital Serial Integrated Controller (IC) models
- Mounting platforms include plain formed table top and table top with single tilt-axis connector
- Internal wire table top for pass-through or IC sensor wiring on certain models
- Fixed, Inverted or Mobile Installations
- Mil-Spec Connectors
- Tough metal housing and gearing for durability in harsh environments
- Marine configuration that meets IP-67 standards
- Shock & Vibration Mil-spec tested.
Documentation
Additional Info
Sensor Integration
- Multi-Spectrum Cameras (Visible/NIR/SWIR)
- Thermal Imagers (LWIR)
- IR and Visible Illuminators
- HD and Megapixel Cameras
- Laser Range Finders
- Communication Antennas
Serial IP Features
- Microprocessor control
- Software controlled with status feedback
- Serial Communication: RS232/422/485 and IP
- Control Protocols: QuickSet and Pelco D
- 2 programmable tours and 32 presets
Tilt Connector Features
- Pass-through wiring
- Full feature serial control of single sensor
- Motor drivers for camera lens zoom and focus control
- 1 Auxiliary relay control for wiper, illuminator, laser range finder, etc.
Analog Features
- Simple command and control with one controller for one positioner
- Azimuth/Elevation position feedback output
- Power supply integrated into controller
- 1 Auxiliary relay control for wiper, illuminator, laser range finder, etc.
Mil-Spec Shock & Vibration
- Passed Shock: MIL-STD-810F Meth.516.5
- Passed Vibration: MIL-PRF-49256A
Description
The QPT-20 Series of Pan & Tilt positioners are designed for a wide variety of sensor positioning applications. The QPT-20 Series are rugged and durable enough for virtually any environment, including port surveillance and mobile vehicle vision systems.
Key Features
- Payloads up to 20 lbs-ft. (27.1 Nm) on stepper motor models, 8 lbs-ft. (10.8 Nm) on brush motor models
- Analog driven or Digital Serial Integrated Controller (IC) models
- Mounting platforms include plain formed table top and table top with single tilt-axis connector
- Internal wire table top for pass-through or IC sensor wiring on certain models
- Fixed, Inverted or Mobile Installations
- Mil-Spec Connectors
- Tough metal housing and gearing for durability in harsh environments
- Marine configuration that meets IP-67 standards
- Shock & Vibration Mil-spec tested.
