Quickset Mercury Pan and Tilt Positioner for Payload Capacity up to 75 lbs (Fixed) or 50 lbs (Mobile)
Quickset Mercury Pan and Tilt Positioner for Payload Capacity up to 75 lbs (Fixed) or 50 lbs (Mobile)
Guaranteed safe & secure checkout
*We also accept ACH/wire transfer, checks, and purchase orders.
Key Features
- High speed unit, speed up to 100 deg/sec.
- Health and usage monitoring
- Embedded web server
- Dual HD-SDI output along with dual GigE pass through connections available.
- Continuous 360° rotation
- Serial or Serial over IP control
- IP67, MIL-STD-810 salt/fog & CE rated
- Payload Weight – Fixed 75 lbs. (total)
- Payload Weight – Mobile 50 lbs. (total)
- Reliable, high level of accuracy
- 10-bit linear response velocity control
- Direct control using Deg/Sec speed command.
- Multiple payload communication ports:
- 4 configurable serial, 2 TTL and 1 IP port
- Virtual serial connection using a single IP connection
- High communication rate over serial control for stabilization and tracking applications.
- Geo-positioning/ Geo-Targeting
- Dual protocol – Quickset PTZ Protocol and PELCO-D protocol
Documentation
Description

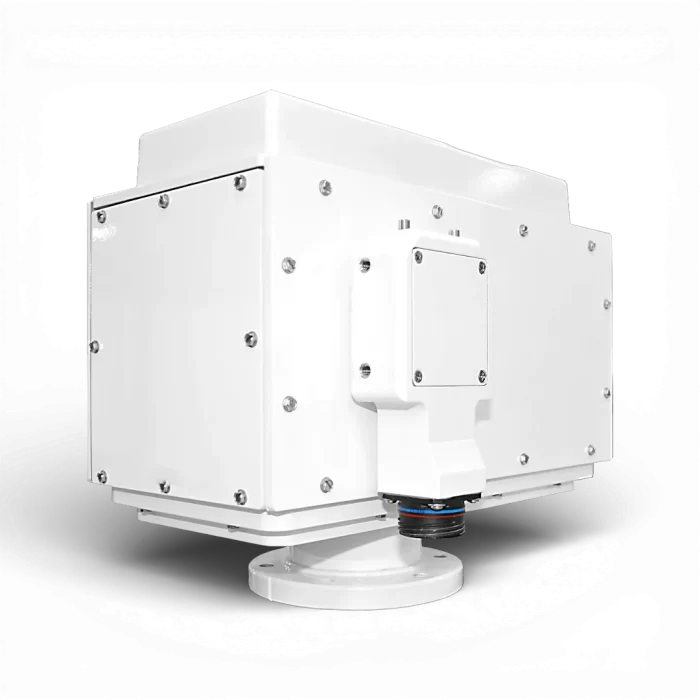

Quickset now produces an improved Mercury Positioner, ideal for mobile and fixed payloads up to 75 lbs. The new Mercury Positioner is designed to articulate payloads up to 50lbs/mobile and 75lbs/fixed at high speeds and accuracy proportionate for medium range optical sensors. Quikset’s Health and Usage Monitoring System (HUMS), an embedded web server and finer velocity control are all now included as standard features.
Key Features
- High speed unit, speed up to 100 deg/sec.
- Health and usage monitoring
- Embedded web server
- Dual HD-SDI output along with dual GigE pass through connections available.
- Continuous 360° rotation
- Serial or Serial over IP control
- IP67, MIL-STD-810 salt/fog & CE rated
- Payload Weight – Fixed 75 lbs. (total)
- Payload Weight – Mobile 50 lbs. (total)
- Reliable, high level of accuracy
- 10-bit linear response velocity control
- Direct control using Deg/Sec speed command.
- Multiple payload communication ports:
- 4 configurable serial, 2 TTL and 1 IP port
- Virtual serial connection using a single IP connection
- High communication rate over serial control for stabilization and tracking applications.
- Geo-positioning/ Geo-Targeting
- Dual protocol – Quickset PTZ Protocol and PELCO-D protocol
