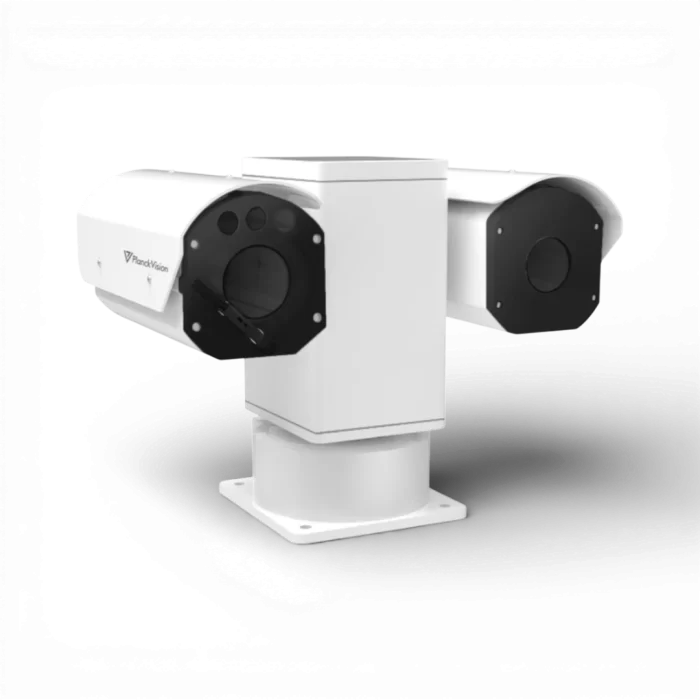

Dual-Vision PTZ Thermal Imaging Camera
Pan-Tilt Mount Temperature Monitoring with Infrared and Visual Cameras
PTZ Thermal Imaging Camera equipped with high-resolution visible and infrared vision. The pan tilt thermal camera provides crisp radiometric images. Designed to monitor critical assets this PTZ camera will see problems before they become costly failures; preventing downtime and enhancing worker safety.
Features:
- 360° Rotating pan tilt for wider monitoring area
- Temperature accuracy of ±2°C
- Intelligent high/low temperature tracking, comparative measurements, and fire detection
- Alarm condition detection, relay control, and network broadcasting features
- Supports widely adopted IIoT protocols
- NDAA Compliant
- PlanckView camera management software and full function SDK available
We’re here to help you!
We are an official partner!
20+ years experience!
Call us to learn more!
Description
Dual-Vision PTZ Thermal Imaging Camera
Introducing the PTZ Thermal Imaging Camera with dual vision thermal imaging, equipped with high-definition variable visible light and high-performance infrared thermal imaging. The PTZ produces high-definition images with fully radiometric temperature measurement. The 360° rotating gimbal provides a wider monitoring range with 30x zoom. Designed to help safeguard your plant and measure temperature slight differences of your critical assets, it allows you to see problems before they become costly failures; preventing downtime and enhancing worker safety.
Camera Features:
- Supports widely adopted network protocols
- Global temperature monitoring with user defined zones
- Supports user defined alarm protocols
- Alarm activated relays and external sensor monitoring
- Temperature accuracy of ±2°C
- 360° Rotating PTZ for wider monitoring area
Typical Applications:
- Substations & Tunnels
- Storage Facilities
- Data Centers & IT Server Rooms
- Refrigeration Warehouses
- Mass Transit Facilities
- Warehouse Fire Prevention
- AND MORE…
Specifications
| Thermal | |
|---|---|
| Thermal Sensor | Uncooled VOx Microbolometer (30Hz) |
| Spectral Range (um) | 7.5-13.5 |
| NETD | <50mK (@25°C，F#1.0) |
| Resolution (pixels) | 640 x 480 |
| Lens Options | f=16.8 mm: 26° (H) x 19.2° (V) FOV, 0.62 mrad Res, variable focus f=13.5 mm: 32° (H) x 24.2° (V) FOV, 0.73 mrad Res, fixed focus f=18 mm: 24° (H) x 18° (V) FOV, 0.59 mrad Res, fixed focus f=25 mm: 17.4° (H) x 13° (V) FOV, 0.45 mrad Res, fixed focus f=36 mm: 12° (H) x 9° (V) FOV, 0.32 mrad Res, fixed focus |
| Measurement Range | High Gain: -20C to 150C; Low Gain: 0C to 550C |
| Accuracy (@ 2m) | ±2C or ±2%* (whichever is greater) |
| Color Palette | 18 |
| Visible | |
| Visible Sensor | 1/1.8″ CMOS |
| Resolution (pixels) | 1920 x 1080 |
| Low Light | Color: 0.01 Lux @(F1.5) Black and White: 0.001 Lux @(F1.5) |
| Illumination | IR |
| Video | |
| Visible Resolution | Main: 1080P(@30fps), Sub: D1 |
| Thermal Resolution | Main: 640×480 (@30fps), Sub: 640×480 |
| Video Compression | H.264; Up to 6 Streams |
| Visible/Thermal Fusion | 0 Mode(s) |
| Network | |
| Data Rate | 10/100 Mbps |
| Protocol | HTTP, RTP, RTSP |
| API | ONVIF, JSON Restful |
| Data Transfer | FTP |
| Web UI | 3 User/Pass Permissions |
| I/O Connectors | |
| RJ45 | Yes |
| Analog Video Out | PAL/NTSC w/BNC |
| Audio I/O | Yes |
| Fault Relay | No |
| Relay Switch | 1-Input; 1-Output |
| Storage | TF Card 256G |
| Temperature Measurement | |
| Regions | 12 Local and 1 Global |
| Shapes | Spot, Line, Rectangle, Polygon |
| Alert/Alarm Rules | Above, Below, Between, Out of Range |
| Relative Measurements | Yes |
| Area Shielding | 4 Regions |
| Fire Area/Coverage | Yes |
| Smart Functions | |
| Area Security | None |
| Motion | |
| Pan | 360° continuous, with ±0.1° accuracy at ≤100°/s speed |
| Tilt | Pan: 360° continuous, with ±0.1° accuracy at ≤100°/s speed ±120°, with ±0.1° accuracy at ≤60°/s speed |
| General | |
| Operation | Temperature: -40C to 70C; RH≤95% |
| Ingress Protection | IP66 |
| Power | 24V AC/DC, ≤65W Terminal Block |
| Dimension | 352x259x276 mm (13.87×10.2×10.87 in) |
| Weight | 8 kg (17.6 lb) |
*Disclaimer: Specifications subject to change without notice **Laboratory test data at room temperature
