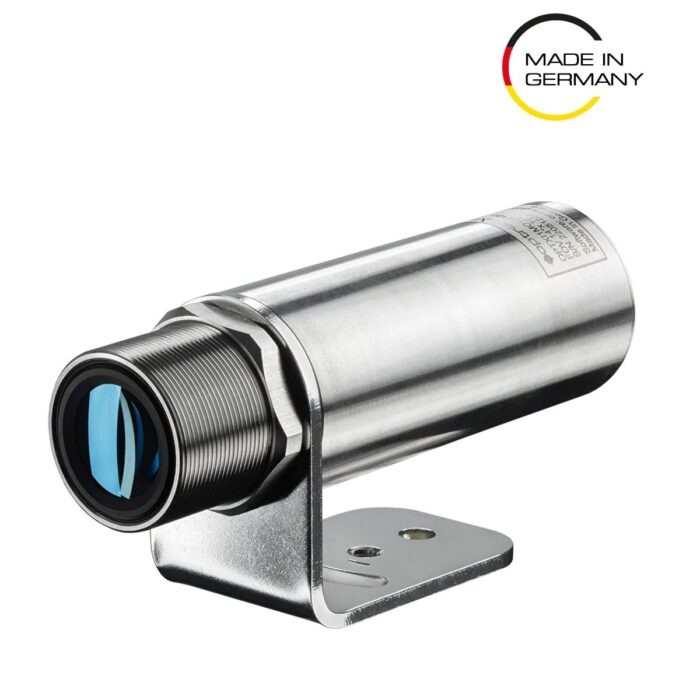

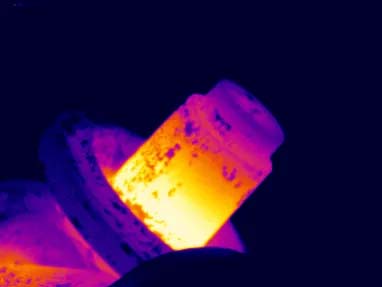

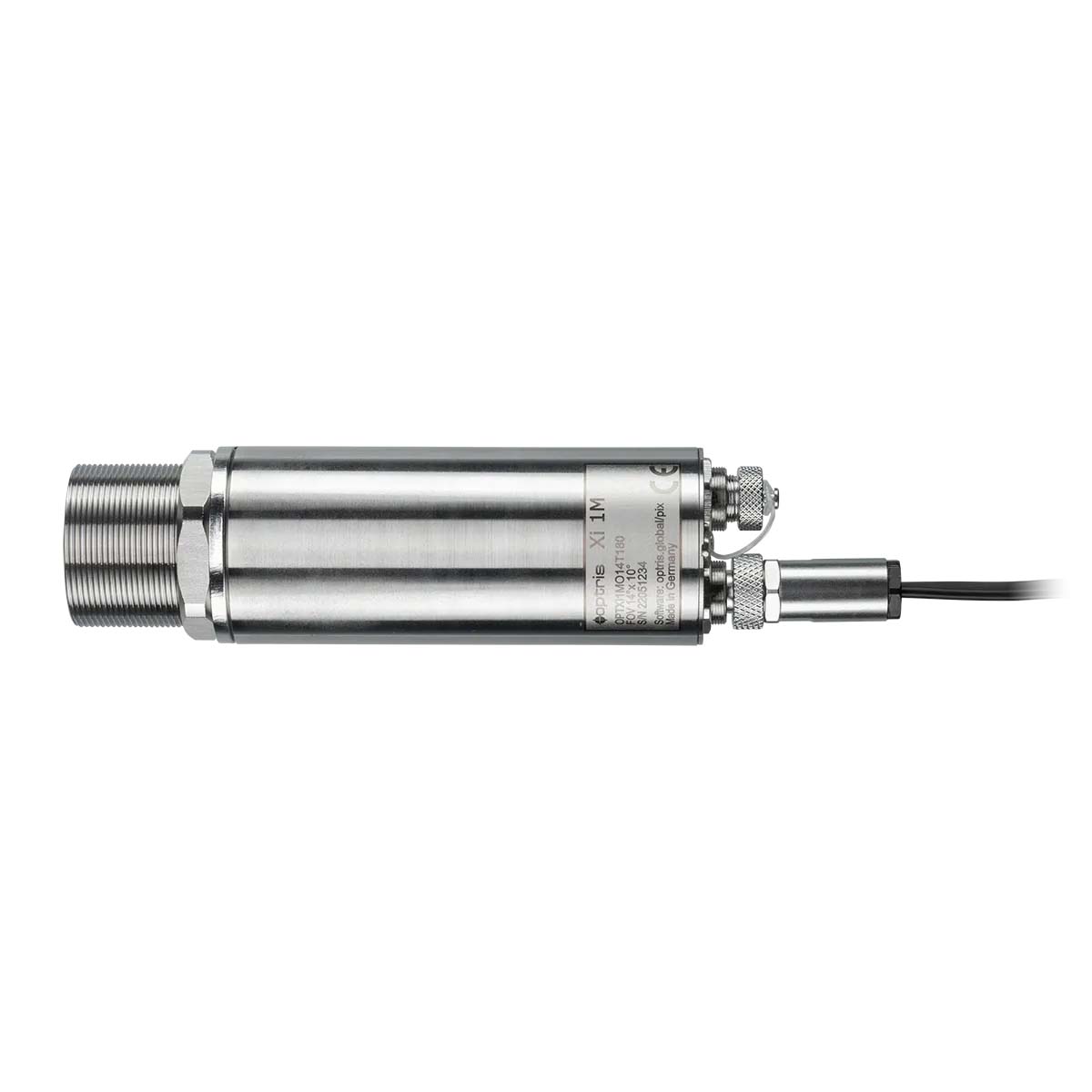

The Optris Xi 1M is a compact, short-wavelength thermal camera designed for non-contact temperature measurement of hot, low-emissivity materials such as metals, ceramics, and semiconductors. By operating within a spectral range of 0.85 to 1.1 µm, the thermal camera effectively minimizes measurement errors caused by reflections and emissivity changes, which are common in high-temperature environments.
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 450°C to 1800°C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Fast line scanning mode with 500 Hz (Ethernet: 396 x 8 px / autonomous: 396 x 1 px)
- Autonomous operation with auto hot spot finder, direct analog or alarm output, and various fieldbus communication options
Documentation
–
Specifications
| MODEL | Xi1M 7°×5° | Xi1M 7°×5° CF | Xi1M 14°×10° | Xi1M 28°×21° |
|---|---|---|---|---|
| DETECTOR | ||||
| Optical resolution | 806:1 | 830:1 | 401:1 | 195:1 |
| Pixel pitch | 15 µm | 15 µm | 15 µm | 15 µm |
| Detector | CMOS | CMOS | CMOS | CMOS |
| Spectral Range | 0.85 – 1.1 μm | 0.85 – 1.1 μm | 0.85 – 1.1 μm | 0.85 – 1.1 μm |
| Optical Filter | No | No | No | No |
| Frame rate | Full resolution: 20 Hz (Ethernet) | Subframe: 20 Hz (USB, autonomous) | Linescan: 500 Hz (Ethernet, autonomous) | Full resolution: 20 Hz (Ethernet) | Subframe: 20 Hz (USB, autonomous) | Linescan: 500 Hz (Ethernet, autonomous) | Full resolution: 20 Hz (Ethernet) | Subframe: 20 Hz (USB, autonomous) | Linescan: 500 Hz (Ethernet, autonomous) | Full resolution: 20 Hz (Ethernet) | Subframe: 20 Hz (USB, autonomous) | Linescan: 500 Hz (Ethernet, autonomous) |
| OPTICAL | ||||
| Field of View | 7°×5° (396×300 pixels) | 7°×5° CF (396×300 pixels) | 14°×10° (396×300 pixels) | 28°×21° (396×300 pixels) |
| Focal length [mm] | 50 | 50 | 25 | 12 |
| F Number | 2.8 | 2.8 | 1.8 | 2 |
| Optical Resolution | 806:1 | 830:1 | 401:1 | 195:1 |
| Minimum Distance to target | 800 mm | 500 mm | 300 mm | 300 mm |
| Interchangeable optics | No | No | No | No |
| MEASUREMENT | ||||
| Object Measurement Range | 525 – 1800 °C (977 – 3272 °F) | 525 – 1800 °C (977 – 3272 °F) | 450 – 1800 °C (842 – 3272 °F) | 450 – 1800 °C (842 – 3272 °F) |
| Accuracy | < 1400 °C: ±1 % of reading < 1600 °C: ±2 % of reading |
< 1400 °C: ±1 % of reading < 1600 °C: ±2 % of reading |
< 1400 °C: ±1 % of reading < 1600 °C: ±2 % of reading |
< 1400 °C: ±1 % of reading < 1600 °C: ±2 % of reading |
| Thermal Sensitivity (NETD) | — | — | — | — |
| Smallest detectable Spot Size IFOV: 1 pixel | 0.3 mm | 0.1 mm | 0.5 mm | 0.7 mm |
| Smallest measurable Spot Size MFOV | 1.2 mm | 0.4 mm | 2.5 mm | 2.8 mm |
| MFOV Measurement Field of View | 4×4 pixels | 4×4 pixels | 4×4 pixels | 4×4 pixels |
| Warm-up time | 10 min | 10 min | 10 min | 10 min |
| Emissivity / Transmissivity / Reflectivity | adjustable: 0.100…1.100 | adjustable: 0.100…1.100 | adjustable: 0.100…1.100 | adjustable: 0.100…1.100 |
| INTERFACES | ||||
| Interface | USB 2.0, Ethernet (100 Mbit/s) | USB 2.0, Ethernet (100 Mbit/s) | USB 2.0, Ethernet (100 Mbit/s) | USB 2.0, Ethernet (100 Mbit/s) |
| Supported Protocols | USB, Ethernet (Static), RS485, Serial Communication Optional: Ethernet/IP, ProfiNet, Modbus TCP |
USB, Ethernet (Static), RS485, Serial Communication Optional: Ethernet/IP, ProfiNet, Modbus TCP |
USB, Ethernet (Static), RS485, Serial Communication Optional: Ethernet/IP, ProfiNet, Modbus TCP |
USB, Ethernet (Static), RS485, Serial Communication Optional: Ethernet/IP, ProfiNet, Modbus TCP |
| Compatible Software | PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK | PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK | PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK | PIXConnect, EasyComm, ConnectSDK, EasyAPI, DirectSDK |
| ANALOG INPUT/OUTPUT | ||||
| Direct output/input | 1x analog output (0/4–20 mA) 1x input (analog or digital); optically isolated | 1x analog output (0/4–20 mA) 1x input (analog or digital); optically isolated | 1x analog output (0/4–20 mA) 1x input (analog or digital); optically isolated | 1x analog output (0/4–20 mA) 1x input (analog or digital); optically isolated |
| Optional Industrial Process interface (PIF) | 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; optically isolated | 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; optically isolated | 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; optically isolated | 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay); stackable up to 3 PIFs; optically isolated |
| Cable length | Ethernet / RS485: 20 m (extendable up to 100 m) | USB: 1 m (standard), 3 m, 5 m | Ethernet / RS485: 20 m (extendable up to 100 m) | USB: 1 m (standard), 3 m, 5 m | Ethernet / RS485: 20 m (extendable up to 100 m) | USB: 1 m (standard), 3 m, 5 m | Ethernet / RS485: 20 m (extendable up to 100 m) | USB: 1 m (standard), 3 m, 5 m |
| IMAGE PROCESSING | ||||
| Configuration | via PIXConnect | via PIXConnect | via PIXConnect | via PIXConnect |
| Operation | Autonomous Standalone and/or computer-enabled | Autonomous Standalone and/or computer-enabled | Autonomous Standalone and/or computer-enabled | Autonomous Standalone and/or computer-enabled |
| Capabilities | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, |
| GENERAL | ||||
| Size | Ø 36 mm × 112–127 mm (depending on lens), thread: M30x1 | Ø 36 mm × 112–127 mm (depending on lens), thread: M30x1 | Ø 36 mm × 112–127 mm (depending on lens), thread: M30x1 | Ø 36 mm × 112–127 mm (depending on lens), thread: M30x1 |
| Housing Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Weight | 270 g (without mounting bracket) | 270 g (without mounting bracket) | 270 g (without mounting bracket) | 270 g (without mounting bracket) |
| Tripod | 1/4-20 UNC | 1/4-20 UNC | 1/4-20 UNC | 1/4-20 UNC |
| Focus | — | — | — | — |
| Country of Origin | Germany | Germany | Germany | Germany |
| ENVIRONMENTAL & CERTIFICATIONS | ||||
| Operating Temperature Range | — | — | — | — |
| Storage Temperature Range | -40 … 70 °C | -40 … 70 °C | -40 … 70 °C | -40 … 70 °C |
| Relative humidity | 10 – 95 %, non condensing | 10 – 95 %, non condensing | 10 – 95 %, non condensing | 10 – 95 %, non condensing |
| Protection Class | IP67, NEMA-4 | IP67, NEMA-4 | IP67, NEMA-4 | IP67, NEMA-4 |
| EMC | 2014/30/EU | 2014/30/EU | 2014/30/EU | 2014/30/EU |
| Shock | IEC 60068-2-27 (25 G and 50 G) | IEC 60068-2-27 (25 G and 50 G) | IEC 60068-2-27 (25 G and 50 G) | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) |
| Standards | CE, UKCA, RoHS | CE, UKCA, RoHS | CE, UKCA, RoHS | CE, UKCA, RoHS |
| POWER | ||||
| Power Supply | USB or Power over Ethernet or 8–30 VDC | USB or Power over Ethernet or 8–30 VDC | USB or Power over Ethernet or 8–30 VDC | USB or Power over Ethernet or 8–30 VDC |
| Power Consumption | max. 2.5 W | max. 2.5 W | max. 2.5 W | max. 2.5 W |
| Part number | OPTXI1MO7SFT180 | OPTXI1MO7CFT180 | OPTXI1MO14T180 | OPTXI1MO28T180 |
| Additional Remarks | 1) Start-up temperature range for variant with focal length of 50 mm is increased to 525°C for 20 Hz and 575°C for 500 Hz modes | 1) Start-up temperature range for variant with focal length of 50 mm is increased to 525°C for 20 Hz and 575°C for 500 Hz modes | 1) Start-up temperature range for variant with focal length of 50 mm is increased to 525°C for 20 Hz and 575°C for 500 Hz modes | 1) Start-up temperature range for variant with focal length of 50 mm is increased to 525°C for 20 Hz and 575°C for 500 Hz modes |

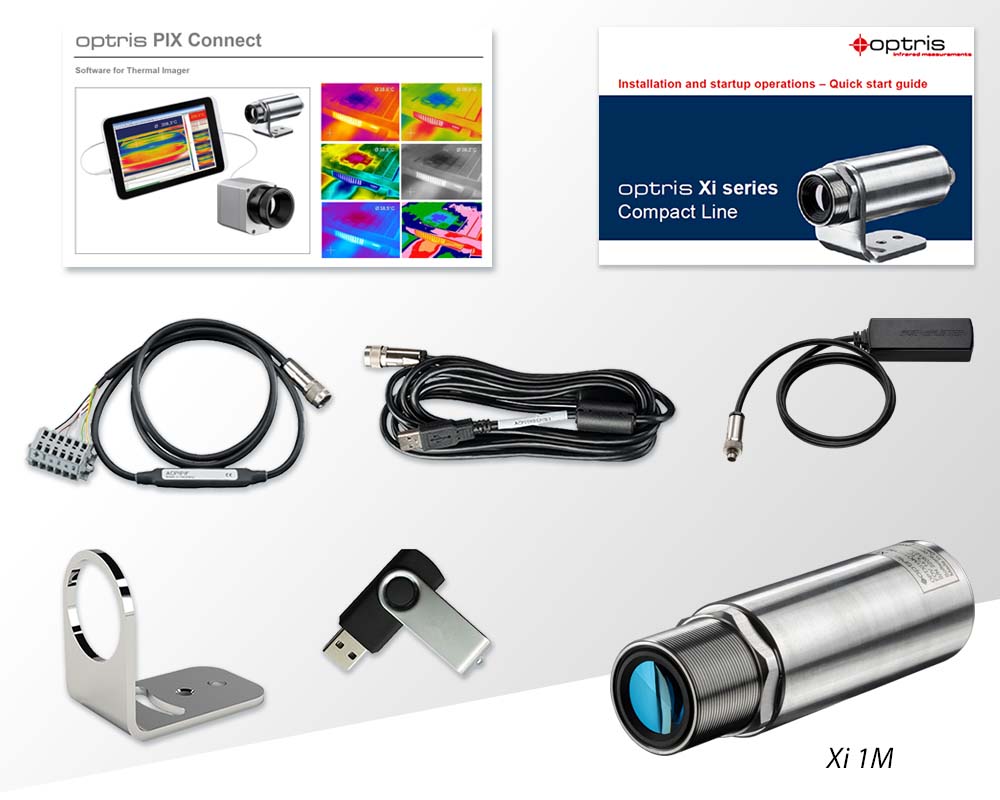

Scope of Supply
- Process imager Xi 1M
- Ethernet / PoE cable 1 m (3.3 ft)
- USB cable 1 m (3.3 ft)
- Cable for output/input 1 m (3.3 ft) incl. terminal block

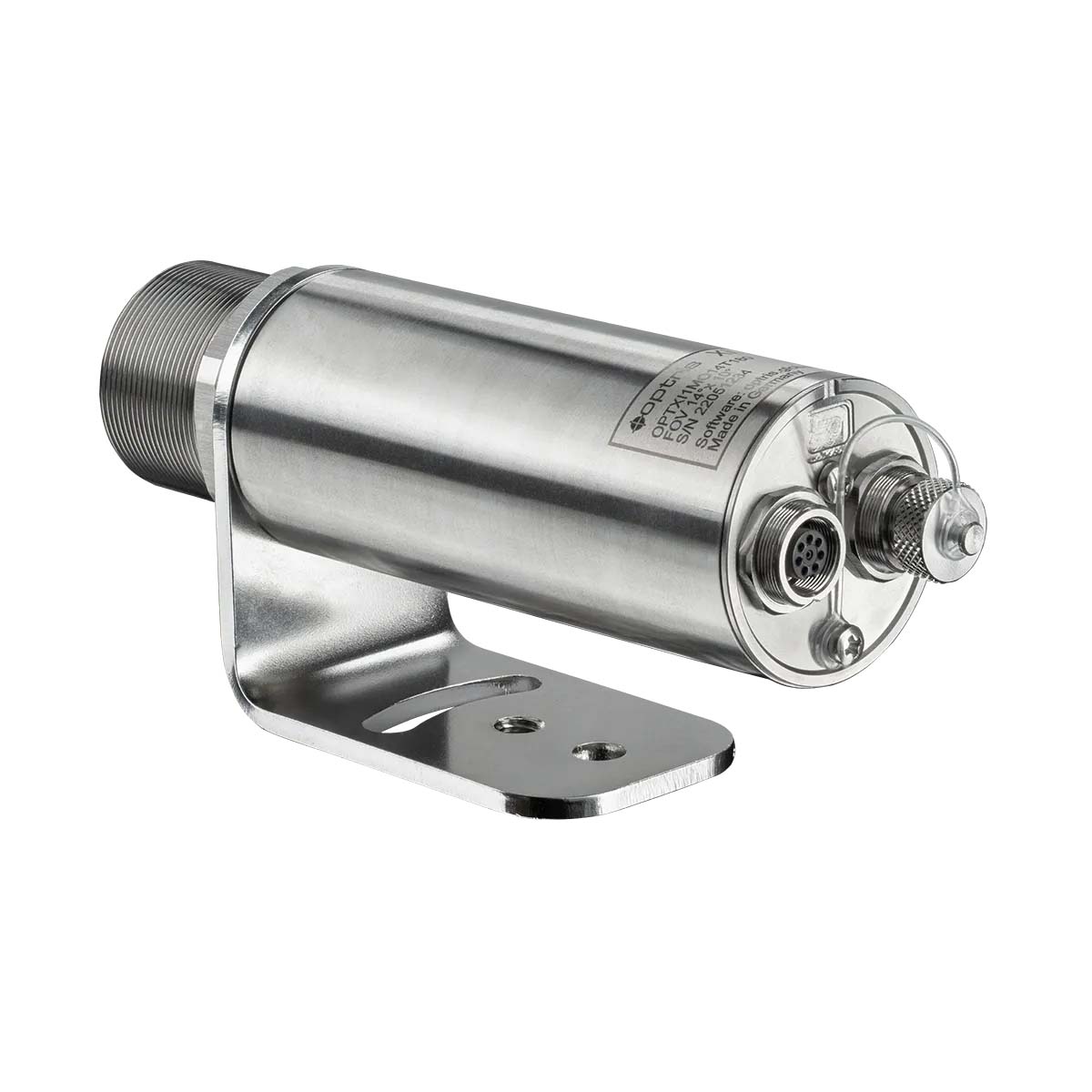

- Mounting bracket with nut
- Software package Optris PIX Connect
- Quick Start Guide
Description
The Optris Xi 1M is a compact, short-wavelength thermal camera designed for non-contact temperature measurement of hot, low-emissivity materials such as metals, ceramics, and semiconductors. By operating within a spectral range of 0.85 to 1.1 µm, the thermal camera effectively minimizes measurement errors caused by reflections and emissivity changes, which are common in high-temperature environments.

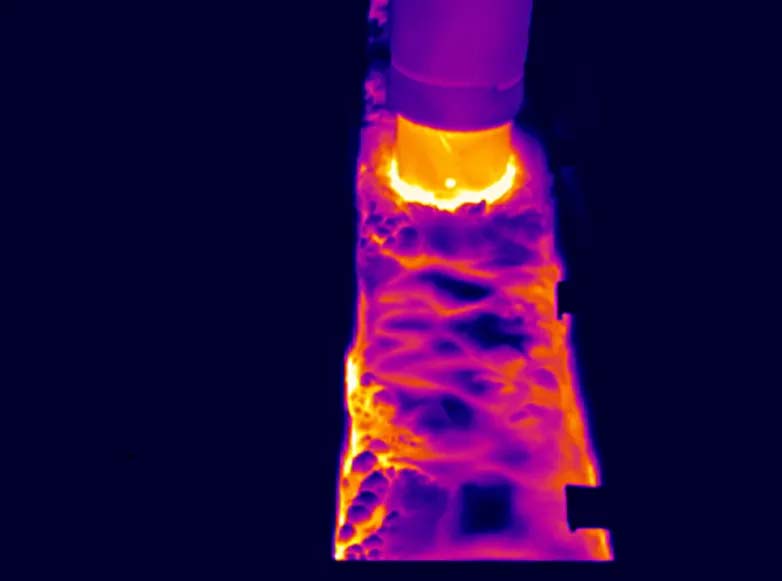

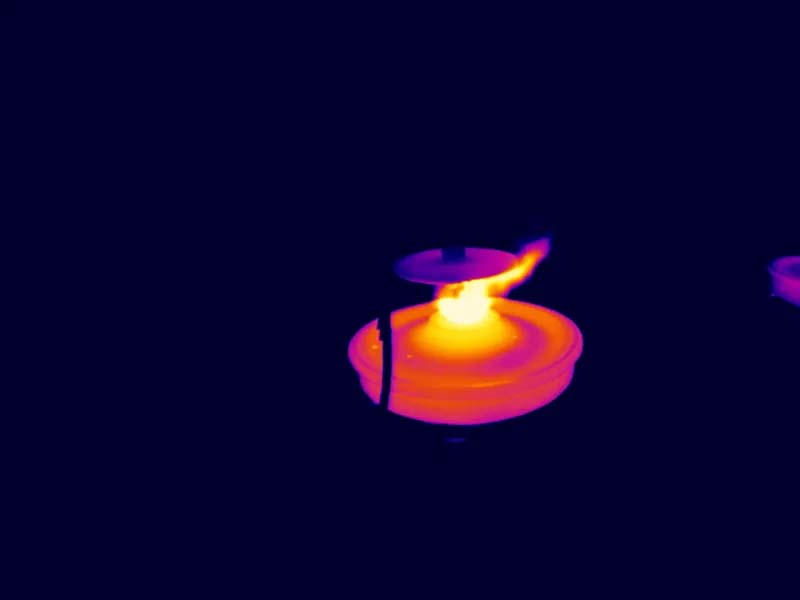

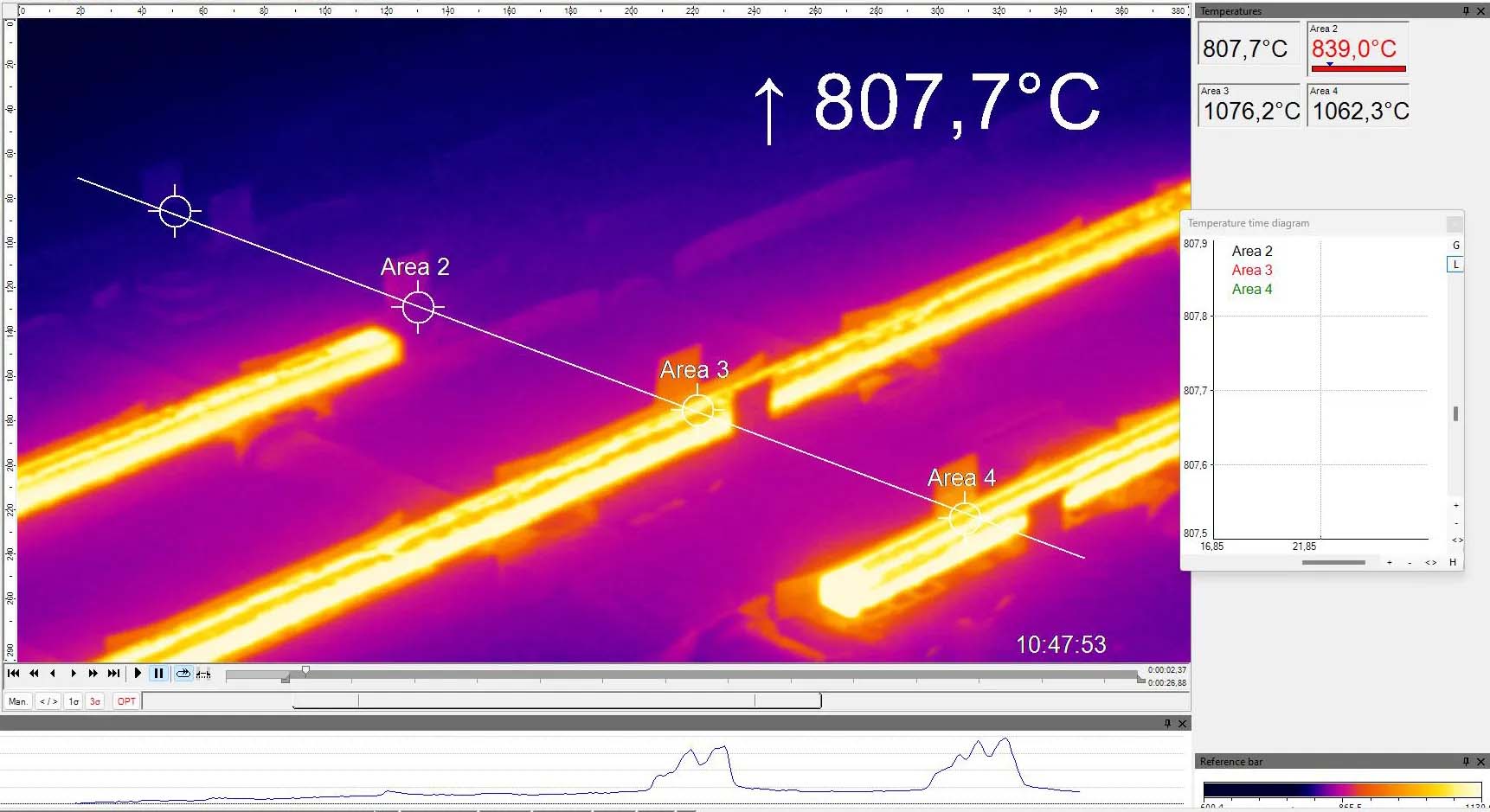

In contrast to many other thermal cameras, the Xi 1M of the Xi series measures temperatures from 450 to 1800 °C without sub-range switching. Its CMOS detector delivers 396 × 300 pixels with a 15 µm pixel pitch. Furthermore, the thermal camera records full-frame images at 20 Hz and supports line scanning at speeds up to 500 Hz. In this mode, 396 × 8 pixels via Ethernet or 396 × 1 pixel in autonomous operation enable real-time temperature profiling of moving targets, such as metal strips or rotating parts.

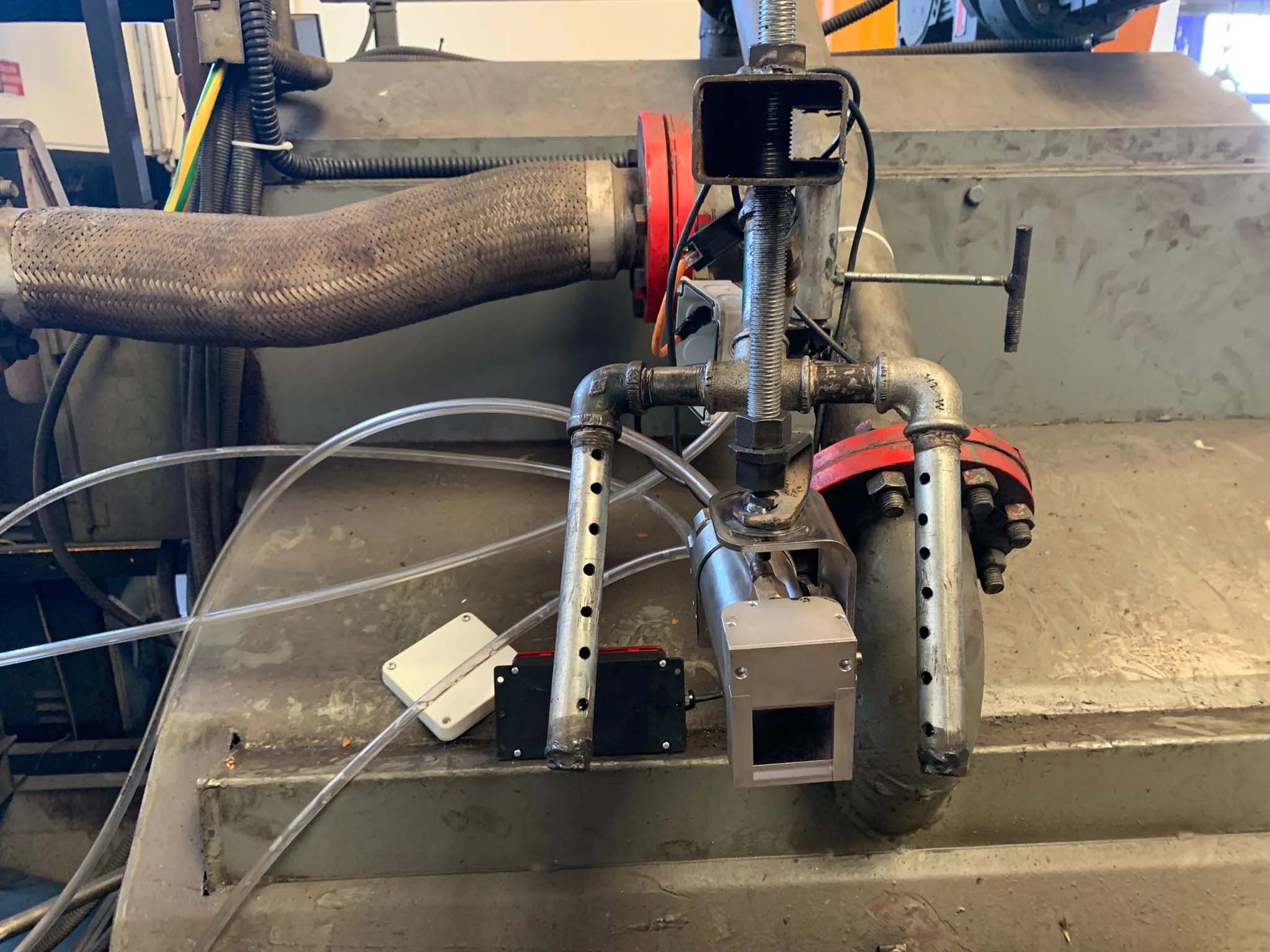

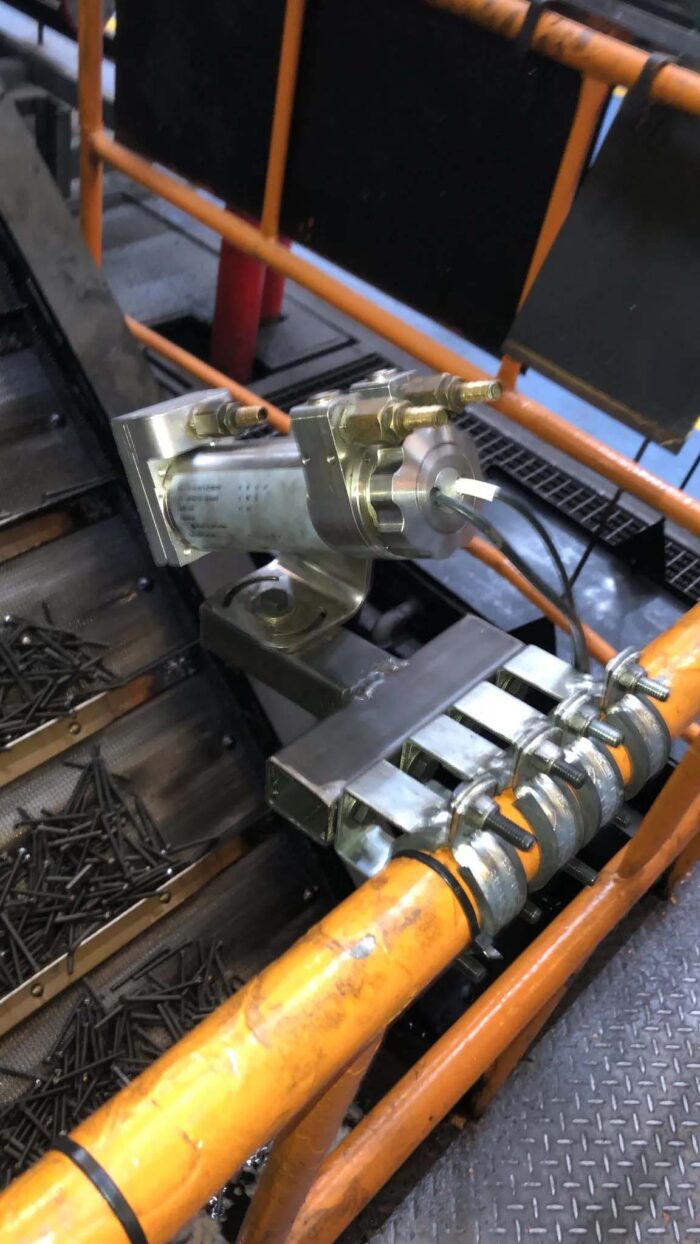

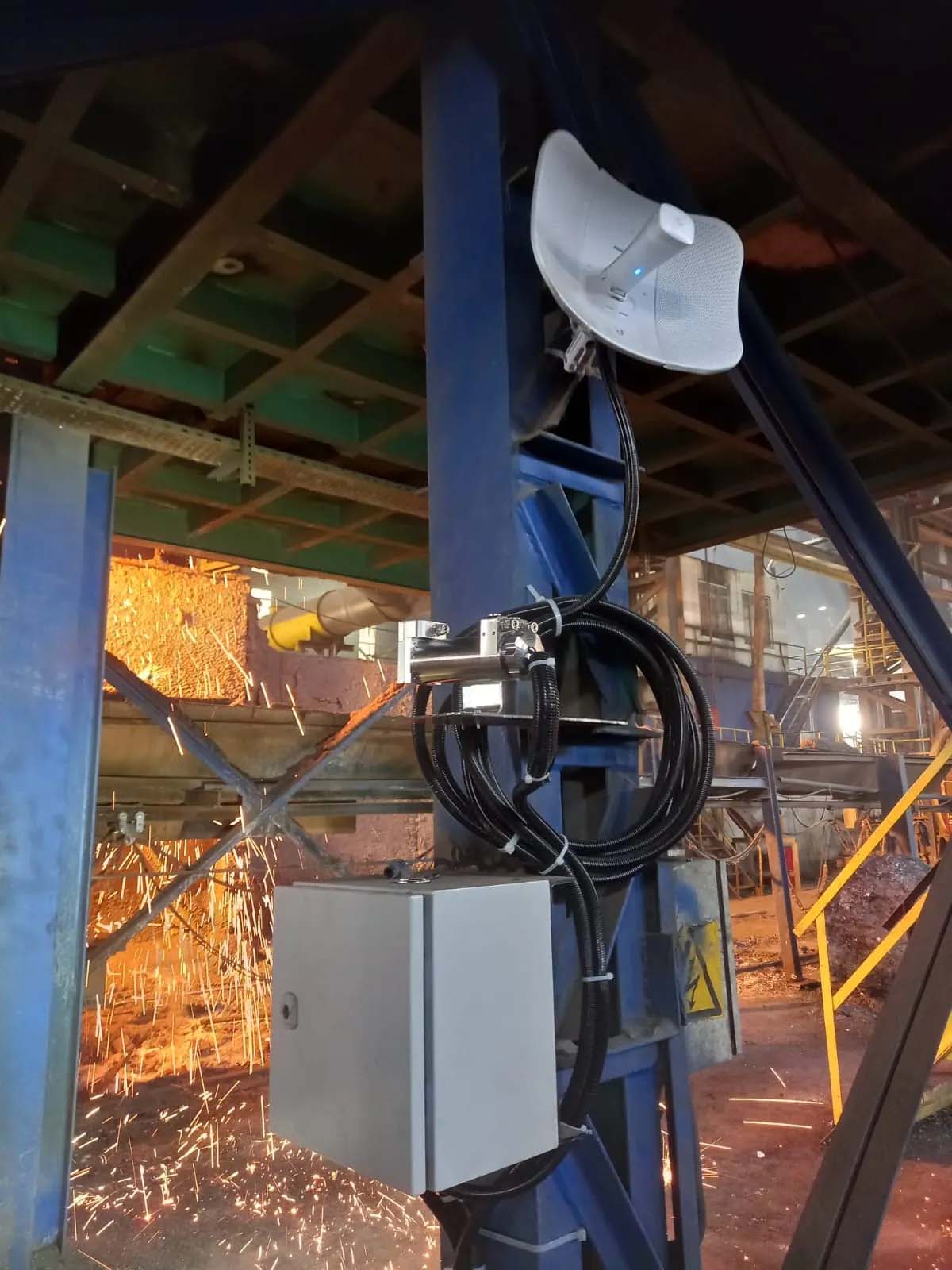

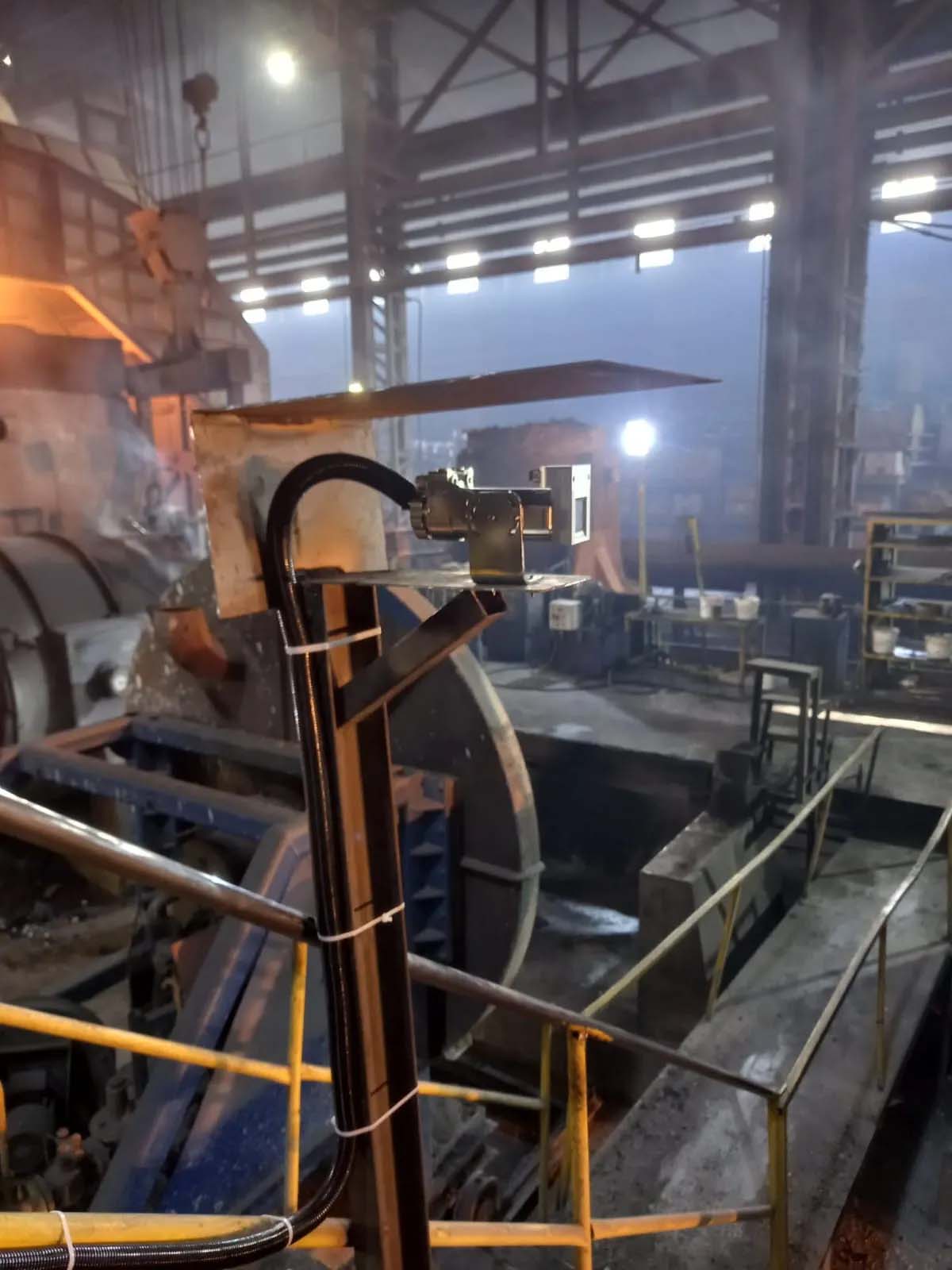

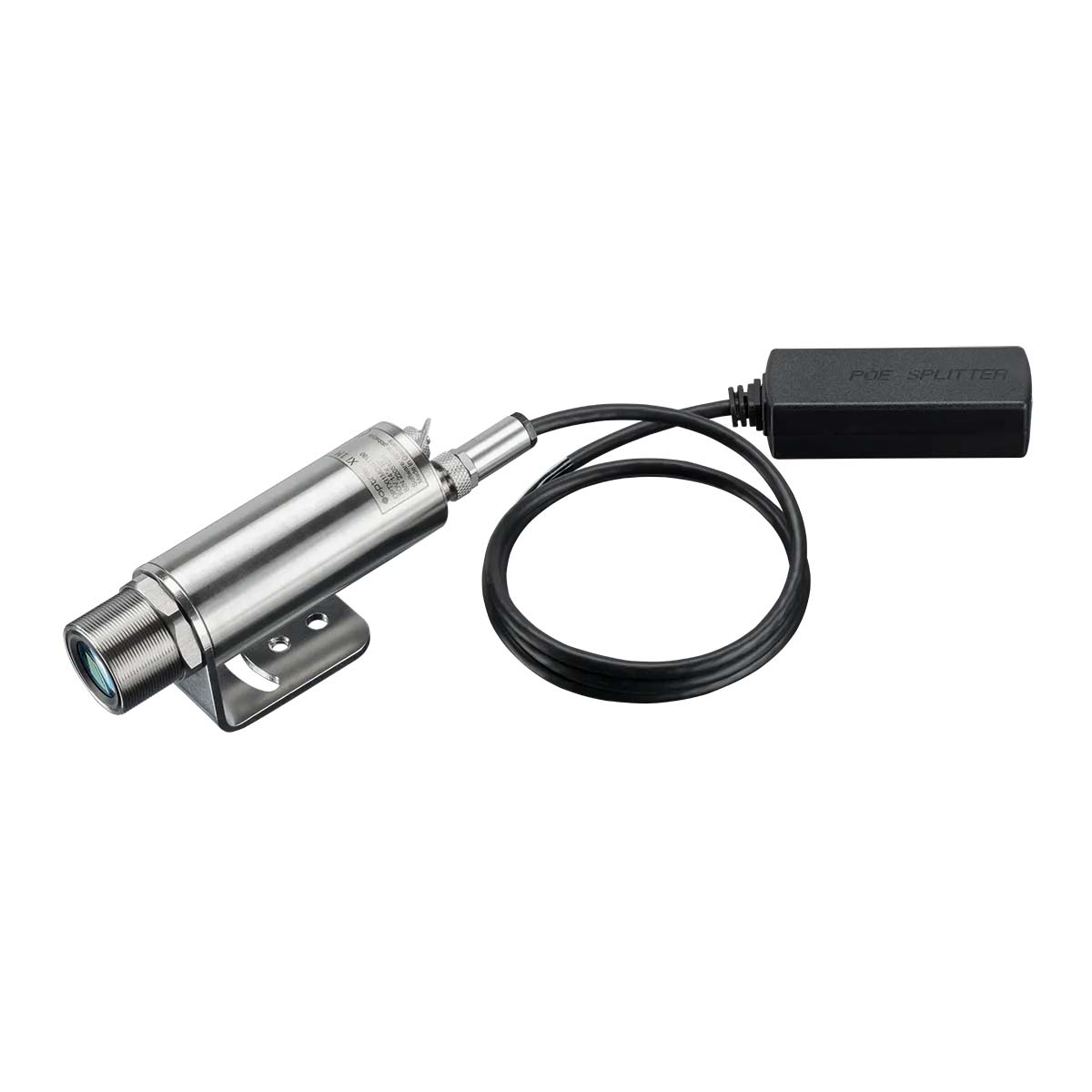

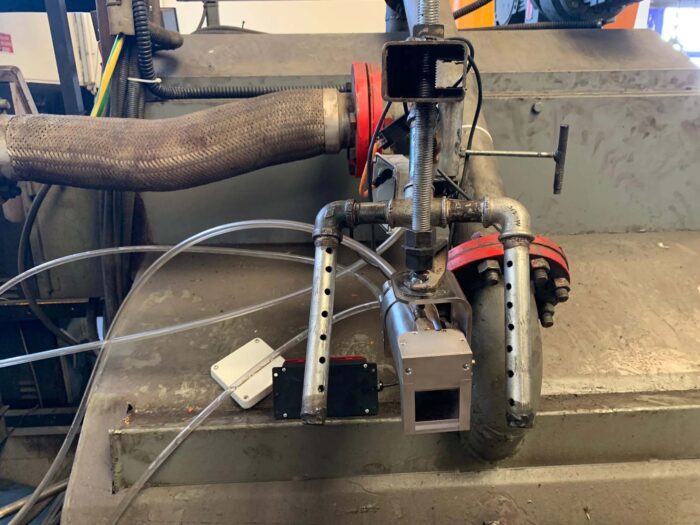

To ensure consistent image sharpness, the Xi 1M features a motorized focus that allows precise alignment at different working distances. Moreover, its IP67-rated stainless-steel housing protects optics and electronics even under demanding industrial conditions. The infrared camera also offers Ethernet, USB 2.0, and RS-485 interfaces. In addition, it supports Power-over-Ethernet and operates from an 8–30 V DC supply, which simplifies integration into existing systems.
For automation tasks, the Xi 1M provides one analog output and one isolated input. When needed, optional process interface modules can add up to three analog or alarm outputs each. Furthermore, up to three stackable adapters can be combined, offering a total of nine independent analog or relay outputs with integrated fail-safe monitoring.

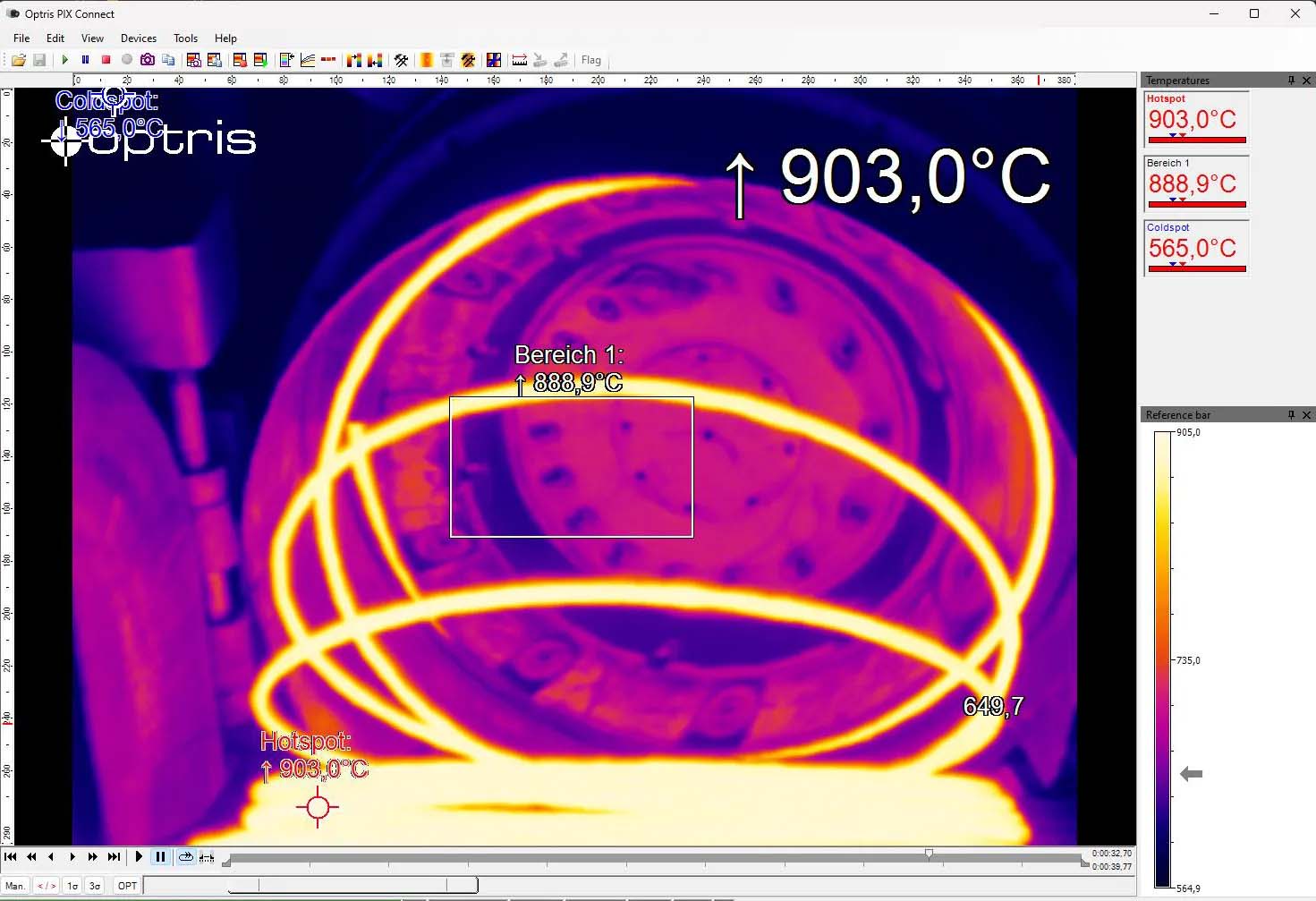

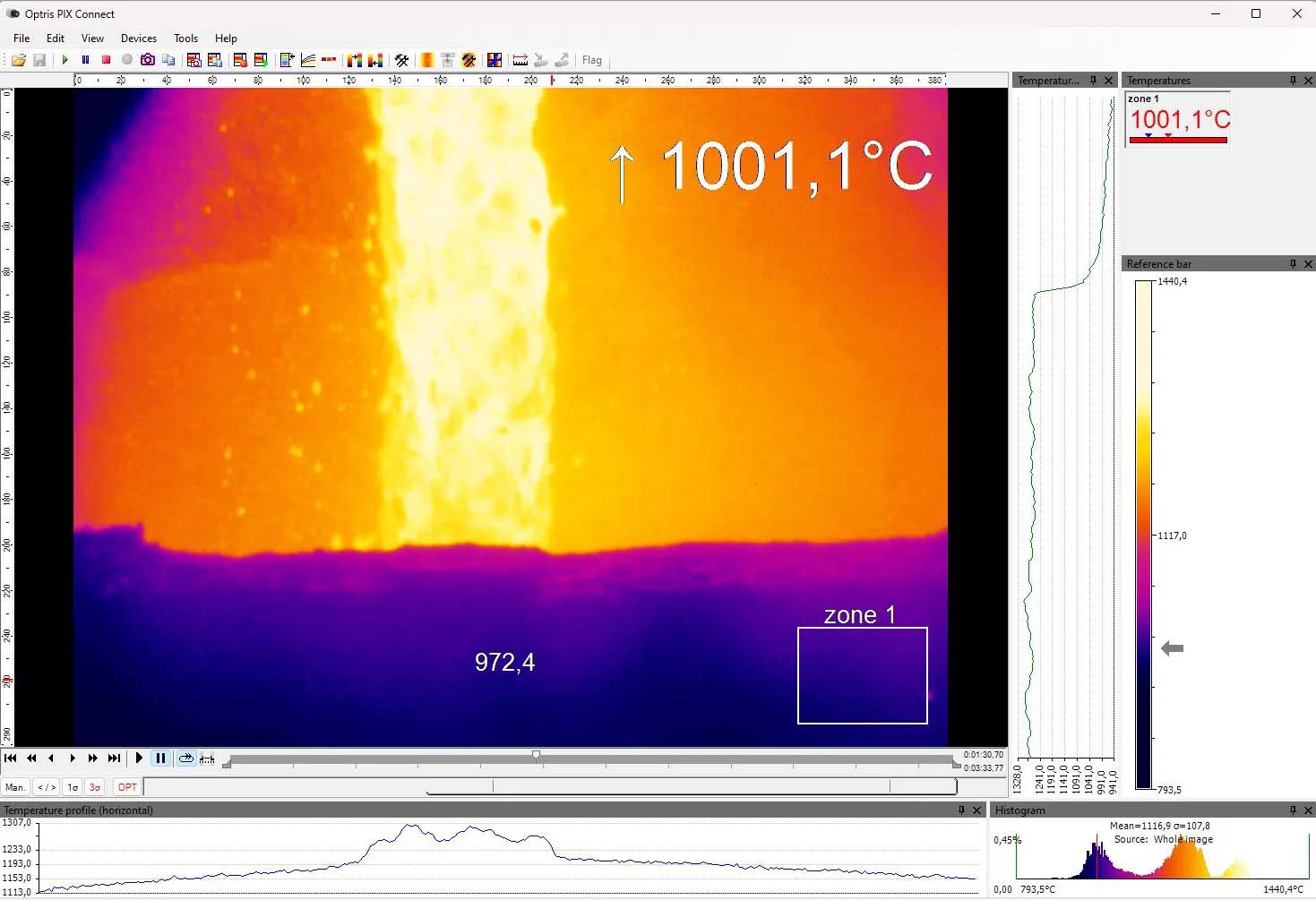

Because of its autonomous operating capability, the thermal camera can perform internal temperature evaluation and hot-spot detection without a computer. The thermal imager directly outputs results as analog or alarm signals. When connected to a PC, however, the PIX Connect software allows configuration, recording, and analysis. It also provides web-server access and advanced process control options for seamless integration into industrial monitoring systems.
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 450°C to 1800°C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Fast line scanning mode with 500 Hz (Ethernet: 396 x 8 px / autonomous: 396 x 1 px)
- Autonomous operation with auto hot spot finder, direct analog or alarm output, and various fieldbus communication options
