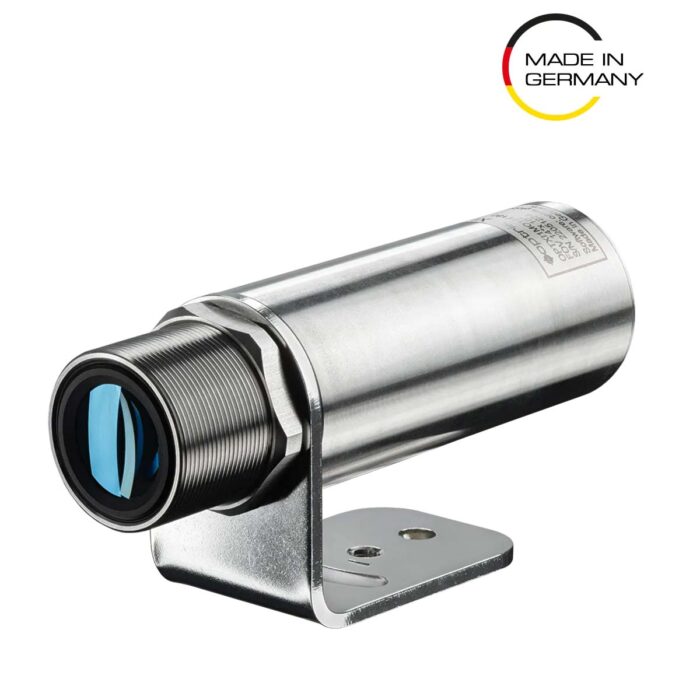

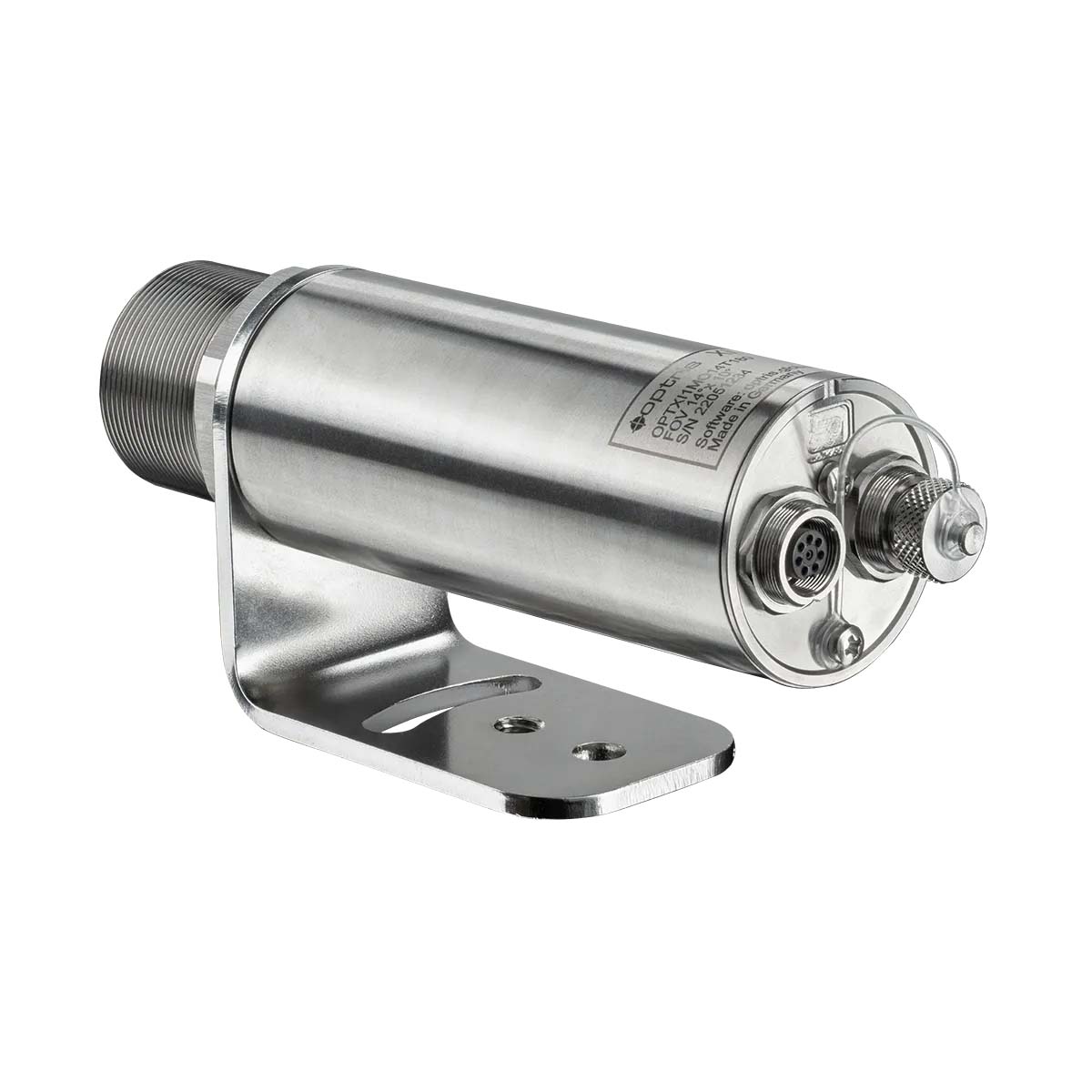

The Optris Xi 05M MeltScope, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. It accurately measures the surface temperatures of hot very metals, steel or ceramics. With an autonomous thermal measurement capability and motorized focus, it offers reliability and ease in industrial settings without additional hardware. Featuring Ethernet, USB interfaces, and analog and digital process interfaces, it enables seamless integration into control systems and machinery.
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 950°C to 2450°C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Highly dynamic CMOS detector with 396 x 300 pixels resolution
- Autonomous operation with auto hot spot finder, direct analog or alarm output, and various fieldbus communication options
Documentation
–
Specifications
| MODEL | Xi 05M MeltScope 14°×10° |
|---|---|
| DETECTOR | |
| Optical resolution |
Full resolution: 396×300 pixels (Ethernet) Subframe mode: 132×100 pixels (USB, autonomous) Linescan: 396 × 8 pixels (Ethernet) Linescan: 396 × 1 pixels (Ethernet, autonomous) |
| Pixel pitch | 15 µm |
| Detector | CMOS |
| Spectral Range | 500 – 540 nm |
| Optical Filter | No |
| Frame rate |
Full resolution: 20 Hz (Ethernet) 1) Subframe mode: 20 Hz (USB, autonomous) 1) Linescan: 500 Hz (Ethernet, autonomous) 1) |
| OPTICAL | |
| Field of View | 14° × 10° (396×300 pixels) |
| Focal length [mm] | 25 |
| F Number | 2.8 |
| Optical Resolution | 400:1 |
| Minimum Distance to target | 300 mm |
| Interchangeable optics | No |
| MEASUREMENT | |
| Object Measurement Range |
950 °C … 2450 °C (20 Hz) 1050 °C … 2450 °C (500 Hz) |
| Accuracy |
For object temperature < 2000 °C: ±1 % of reading for 20 Hz, 500 Hz For object temperature ≥ 2000 °C: ±2 % of reading for 20 Hz, 500 Hz |
| Thermal Sensitivity (NETD) | < 2 K (< 1800 °C) / < 4 K (< 1800 °C) |
| Minimal Instantaneous Field of View (IFOV) | 0.19 mm |
| Smallest measurable Spot Size MFOV | 0.8 mm |
| Measurement Field of View (MFOV) | 4×4 pixels |
| Warm-up time | 10 min |
| Emissivity / Transmissivity / Reflectivity | adjustable: 0.100…1.100 |
| INTERFACES | |
| Interface | USB 2.0, Ethernet (100 Mbit/s) / PoE / RS 485 2) |
| Supported Protocols | USB, Ethernet (Static), RS485, Serial Communication Optional: EtherNet/IP, Profinet, Modbus TCP, Ethernet TCP |
| Compatible Software | PIX Connect, EasyComm, ConnectSDK, EasyAPI, DirectSDK |
| ANALOG INPUT/OUTPUT | |
| Direct output/input | 1x analog output (0/4–20 mA), 1x input (analog or digital); optically isolated |
| Optional Industrial Process interface (PIF) | 3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) / 3x inputs (analog or digital) / fail-safe (LED and relay). Stackable up to 3 PIFs; optically isolated |
| Cable length |
Ethernet / RS485: 1 m (3.3 ft) (standard), 5 m (16 ft), 10 m (32 ft), 20 m (65 ft) (extendable up to 100 m / 328 ft) USB: 1 m (3.3 ft) (standard), 3 m (9.8 ft), 5 m (16 ft) |
| IMAGE PROCESSING | |
| Configuration | via PIX Connect |
| Operation | Autonomous Standalone and/or computer-enabled |
| Capabilities | Measurement of hot metal surfaces and molten metal, Autonomous temperature evaluation of areas of interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, |
| GENERAL | |
| Size | Ø 36 mm × 112–127 mm (depending on lens), thread: M30x1 |
| Housing Material | Stainless steel |
| Weight | 270 g (without mounting bracket) |
| Tripod | 1/4-20 UNC |
| Focus | Motorized |
| Country of Origin | Germany |
| ENVIRONMENTAL & CERTIFICATIONS | |
| Operating Temperature Range | 0…50 °C |
| Storage Temperature Range | -40…70 °C |
| Relative humidity | 10 – 95 %, non-condensing |
| Protection Class | IP67, NEMA-4 |
| EMC | 2014/30/EU |
| Shock | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) |
| Standards | CE, UKCA, RoHS |
| POWER | |
| Power Supply | USB or Power over Ethernet or 8–30 VDC |
| Power Consumption | max. 2.5 W |
| Part number | OPTXI05M014T245 |
| Additional Remarks | — |
Scope of Supply
- Process imager Xi 05M
- Ethernet / PoE cable (1 m)
- USB cable (1m)
- Cable for output/input (1 m) incl. terminal block
- Mounting bracket with nut
- Software package optris PIX Connect
- Quick Start Guide
Description

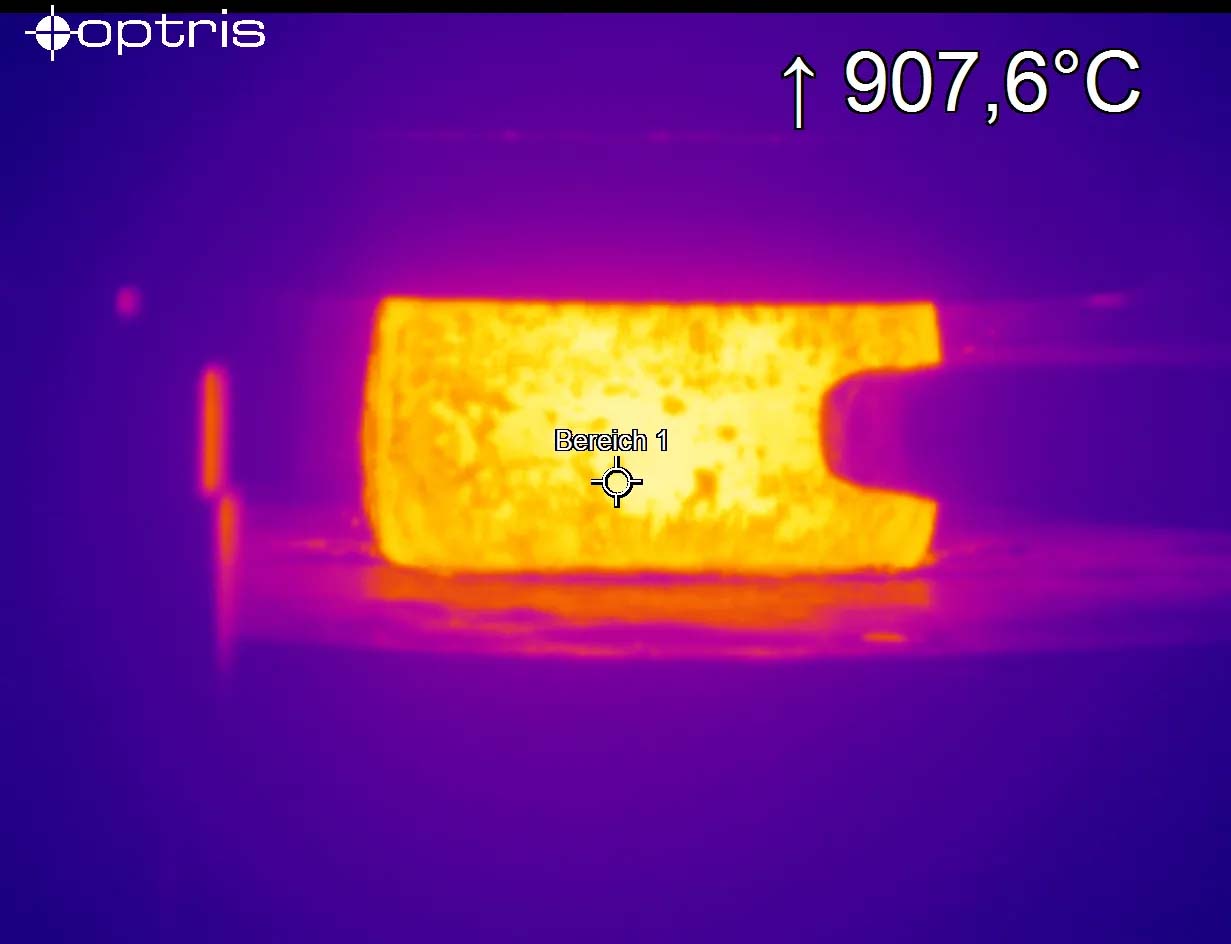

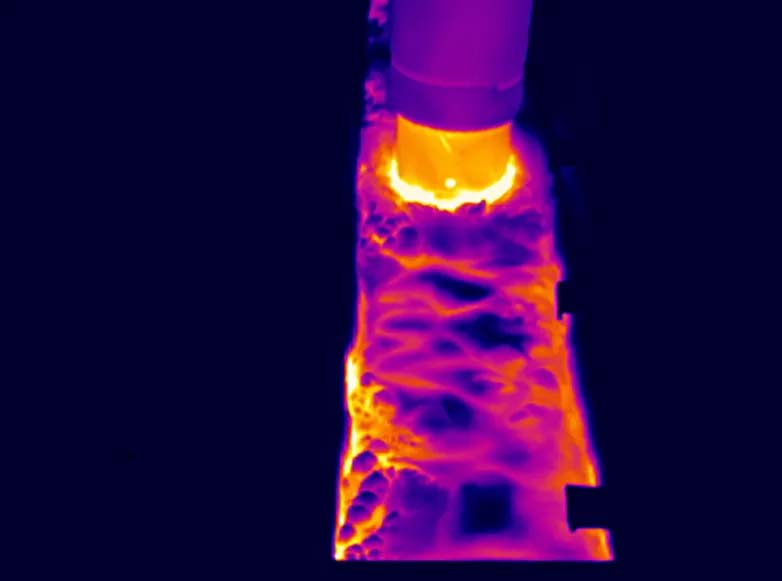

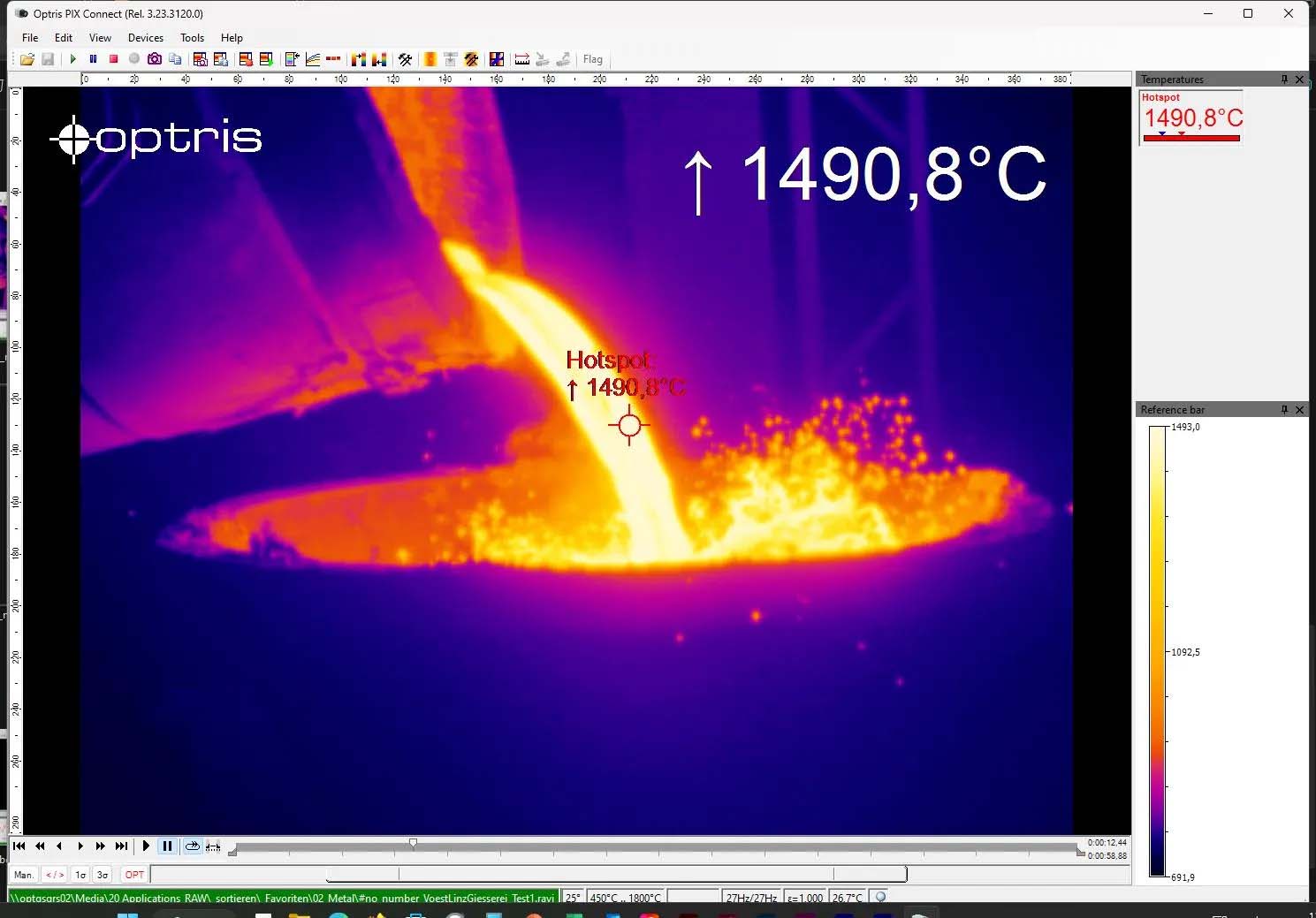

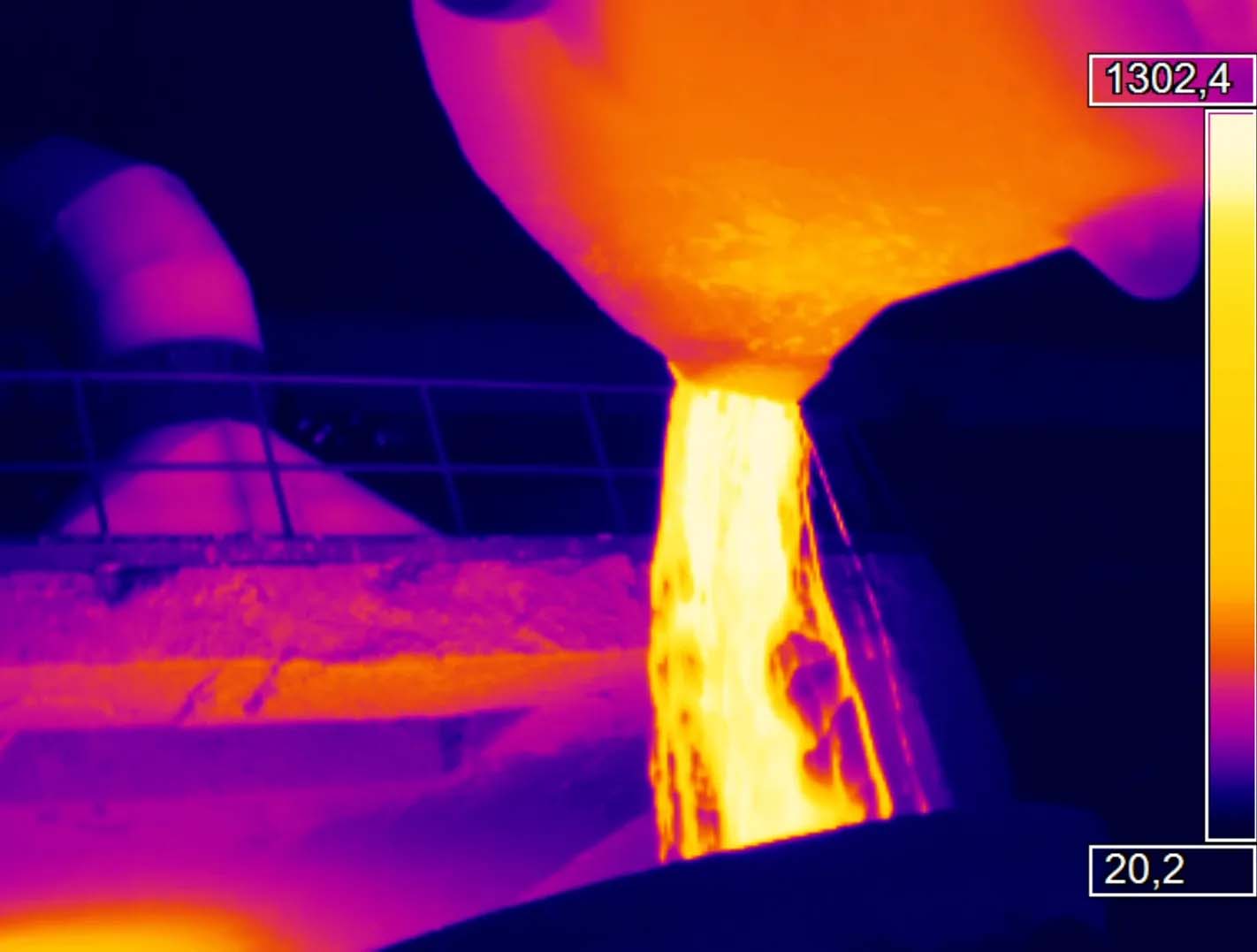

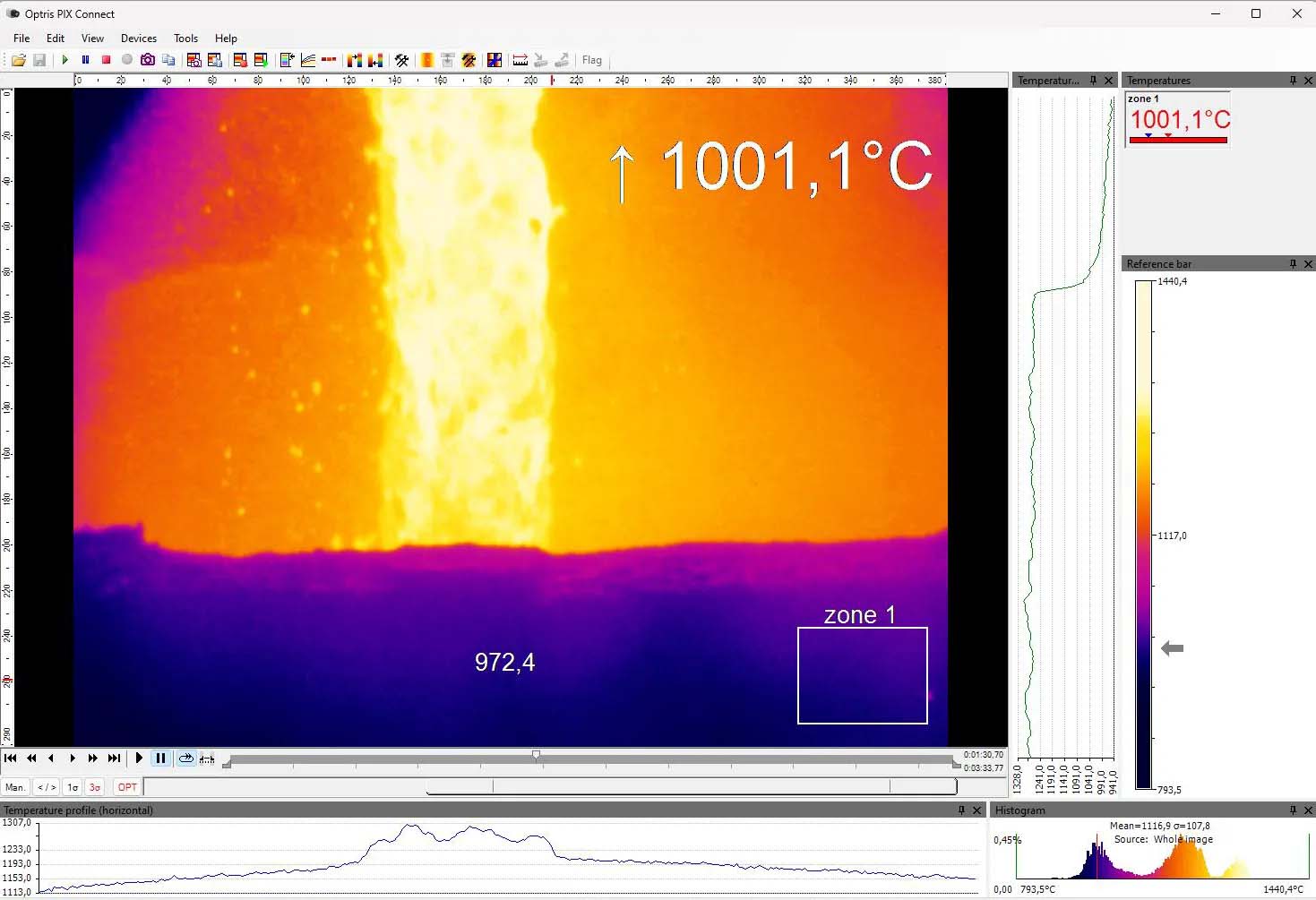

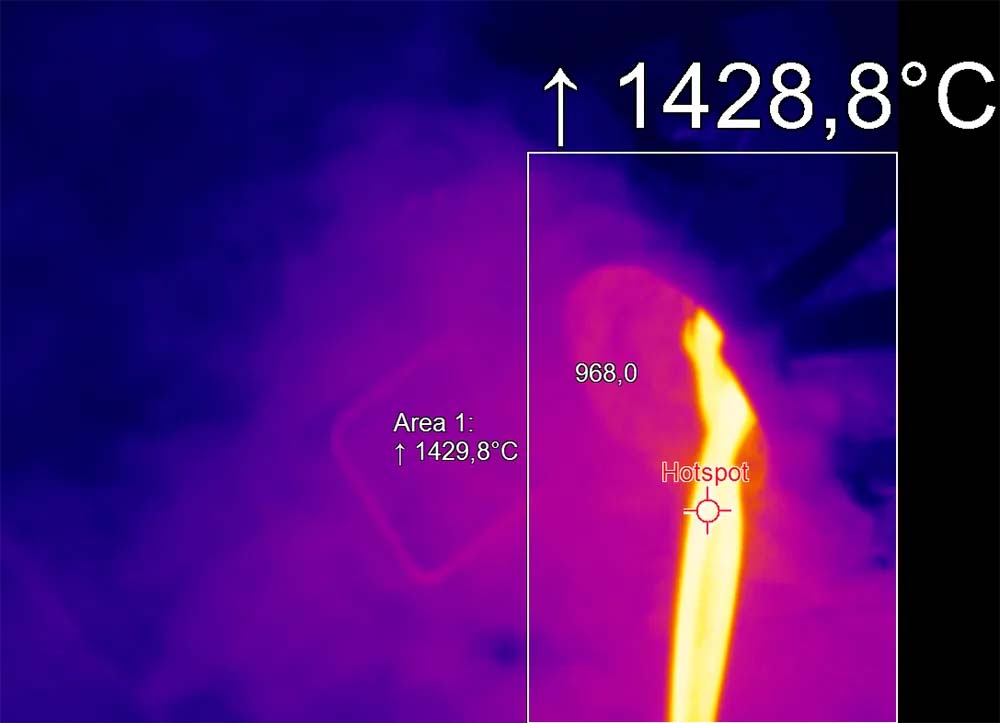

The Optris Xi 05M MeltScope, a short-wavelength infrared camera, excels in non-contact thermal imaging of challenging objects. It accurately measures the surface temperatures of hot very metals, steel or ceramics. With an autonomous thermal measurement capability and motorized focus, it offers reliability and ease in industrial settings without additional hardware. Featuring Ethernet, USB interfaces, and analog and digital process interfaces, it enables seamless integration into control systems and machinery.
Non-reflective materials typically exhibit high and stable emissivity across long-wave infrared ranges, regardless of surface texture. In contrast, metallic and reflective materials show low emissivity at long wavelengths, resulting in unreliable temperature readings.
The short-wavelength spectral range of the Optris Xi 05M MeltScope thermal camera matches the peak emissivity of most metals, enabling accurate non-contact temperature measurement. According to Planck’s law, shorter wavelengths emit more infrared radiation, reducing emissivity-related errors and improving repeatability. Therefore, reflective materials at high temperatures should be measured using the shortest feasible wavelength.
The Xi 05M offers autonomous hot-spot detection, ensuring effective monitoring and inspection. Designed and manufactured in Germany, it provides superior accuracy and stability compared to long-wave cameras. The mid-resolution detector (396 × 300 pixels) measures temperatures from 950°C to 2450°C without sub-ranges. Its high distance-to-spot ratio allows precise measurements from afar, while the motorized focus enables remote adjustment.

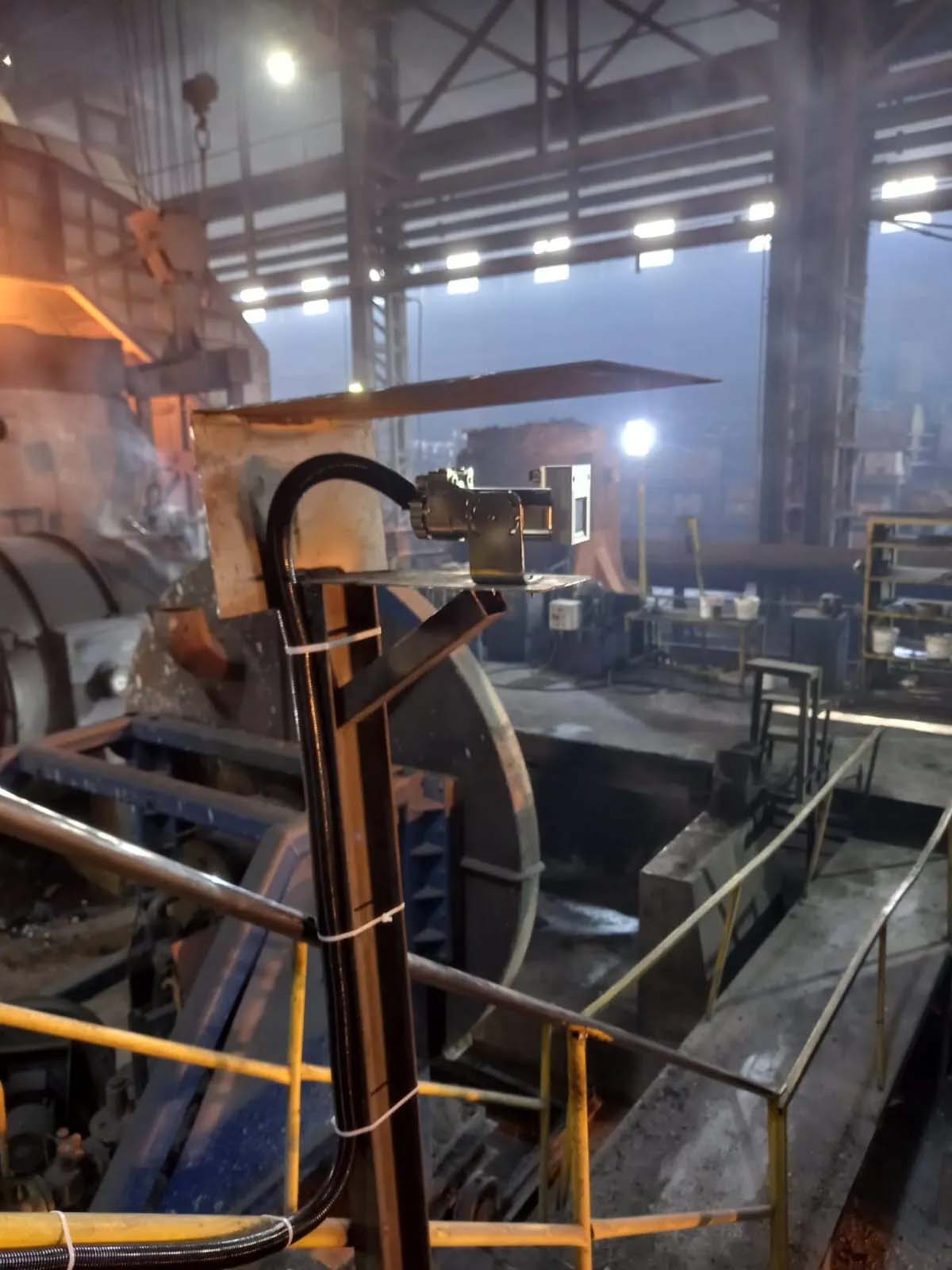

Built for industrial reliability, the compact and waterproof thermal camera supports fixed or mounted installations. Featuring Ethernet and USB interfaces, it delivers 20 Hz imaging and integrates easily into control systems. Additional features include automatic spot detection, analog output (0/4–20 mA), and fieldbus compatibility (Ethernet/IP, Modbus TCP/IP, RS485, Profinet). Optional accessories such as water cooling and air purges extend its use in harsh environments.
- Industrial Ethernet short-wavelength infrared camera
- Wide measurement range from 950°C to 2450°C without sub-ranges
- Small-sized, ruggedized with motorized focus
- Highly dynamic CMOS detector with 396 x 300 pixels resolution
- Autonomous operation with auto hot spot finder, direct analog or alarm output, and various fieldbus communication options
