PI 05M Thermal Camera for Molten Metals
- High dynamic CMOS detector with up to 764 x 480 pixels resolution
- Spectral sensitivity around 0.5 µm – ideal for molten metals and laser processes
- Wide measurement ranges from 900°C to 2450 °C (1,652 °F to 4,442 °F) without sub-ranges
- Up to 1 kHz frame rate for fast processes
- Analog and digital outputs with 1ms response time
Documentation
Specifications
| MODEL | PI 05M | PI05M 27°x17° |
|---|---|---|
| DETECTOR | ||
| Optical resolution | 561:1 | 561:1 |
| Pixel pitch | 15 µm | 15 µm |
| Detector | CMOS | CMOS |
| Spectral Range | 500 – 540 µm | 500 – 540 µm |
| Optical Filter | No | No |
| Frame rate |
Full resolution: 32 Hz Subframe mode: 80 Hz (switchable to 27 Hz) Fast subframe mode: 1 kHz1) Linescan: 1 kHz1) |
Full resolution: 32 Hz Subframe mode: 80 Hz (switchable to 27 Hz) Fast subframe mode: 1 kHz1) Linescan: 1 kHz1) |
| OPTICAL | ||
| Field of View | — | 27°x17° |
| Focal length [mm] | 25 | 25 |
| F Number | 1.8 | 1.8 |
| Optical Resolution | 561:1 | 561:1 |
| Minimum Distance to target | 300 mm | 300 mm |
| Interchangeable optics | Yes | Yes |
| MEASUREMENT | ||
| Object Measurement Range | 900 – 2450 °C (1652 – 4442 °F) | 900 – 2450 °C (1652 – 4442 °F) |
| Accuracy | ±1 % of reading (2000 °C) | ±1 % of reading (2000 °C) |
| Thermal Sensitivity (NETD) | — | — |
| Smallest detectable Spot Size IFOV: 1 pixel | — | 0.1 mm |
| Smallest measurable Spot Size MFOV | — | 0.4 mm |
| MFOV Measurement Field of View | 4×4 pixels | 4×4 pixels |
| Warm-up time | — | — |
| Emissivity / Transmissivity / Reflectivity | — | — |
| INTERFACES | ||
| Interface | — | — |
| Supported Protocols | — | — |
| Compatible Software | — | — |
| ANALOG INPUT/OUTPUT | ||
| Direct output/input | — | — |
| Optional Industrial Process interface (PIF) | 2x 0 – 10 V input, digital input (max. 24 V), 3x 0/4 – 20 mA outputs, 3x relay (0 – 30 V / 400 mA), fail-safe relay | 2x 0 – 10 V input, digital input (max. 24 V), 3x 0/4 – 20 mA outputs, 3x relay (0 – 30 V / 400 mA), fail-safe relay |
| Cable length | USB: 1 m (standard), 3 m, 5 m, 10 m, 20 m | USB: 1 m (standard), 3 m, 5 m, 10 m, 20 m |
| IMAGE PROCESSING | ||
| Configuration | via PIXConnect | via PIXConnect |
| Operation | Computer-enabled | Computer-enabled |
| Capabilities | Measurement of hot metal surfaces and molten metal, Measure Areas of Interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, Temperature-Time Diagrams, Temperature Profiles, Recording & Playing, Triggering … | Measurement of hot metal surfaces and molten metal, Measure Areas of Interest, Linescanner, EventGrabber, Merger, Alarming, Comparison Functions, Temperature-Time Diagrams, Temperature Profiles, Recording & Playing, Triggering … |
| GENERAL | ||
| Size | 46 x 56 x 88 – 129 mm (depending on lens + focus position) | 46 x 56 x 88 – 129 mm (depending on lens + focus position) |
| Housing Material | Aluminium | Aluminium |
| Weight | 245 – 311 g (depending on lens) | 245 – 311 g (depending on lens) |
| Tripod | 1/4-20 UNC | 1/4-20 UNC |
| Focus | — | — |
| Country of Origin | Germany | Germany |
| ENVIRONMENTAL & CERTIFICATIONS | ||
| Operating Temperature Range | — | — |
| Storage Temperature Range | -40 … 70 °C | -40 … 70 °C |
| Relative humidity | 20 – 80 %, non-condensing | 20 – 80 %, non-condensing |
| Protection Class | IP67, NEMA-4 | IP67, NEMA-4 |
| EMC | 2014/30/EU | 2014/30/EU |
| Shock | IEC 60068-2-27 (25 G and 50 G) | IEC 60068-2-27 (25 G and 50 G) |
| Vibration | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) | IEC 60068-2-6 (sinus shaped) IEC 60068-2-64 (broadband noise) |
| Standards | CE, UKCA, RoHS | CE, UKCA, RoHS |
| POWER | ||
| Power Supply | USB | USB |
| Power Consumption | max. 2.5 W | max. 2.5 W |
| Part number | OPTPI05MO13T245 | OPTPI05MO41T245 | OPTPI05MO27T245 |
| Additional Remarks |
1) Subframe can be placed anywhere within the full FOV 2) for 1 kHz mode: ±1.5 % of reading (2000 °C) |
1) Subframe can be placed anywhere within the full FOV 2) for 1 kHz mode: ±1.5 % of reading (2000 °C) |
Scope of Supply

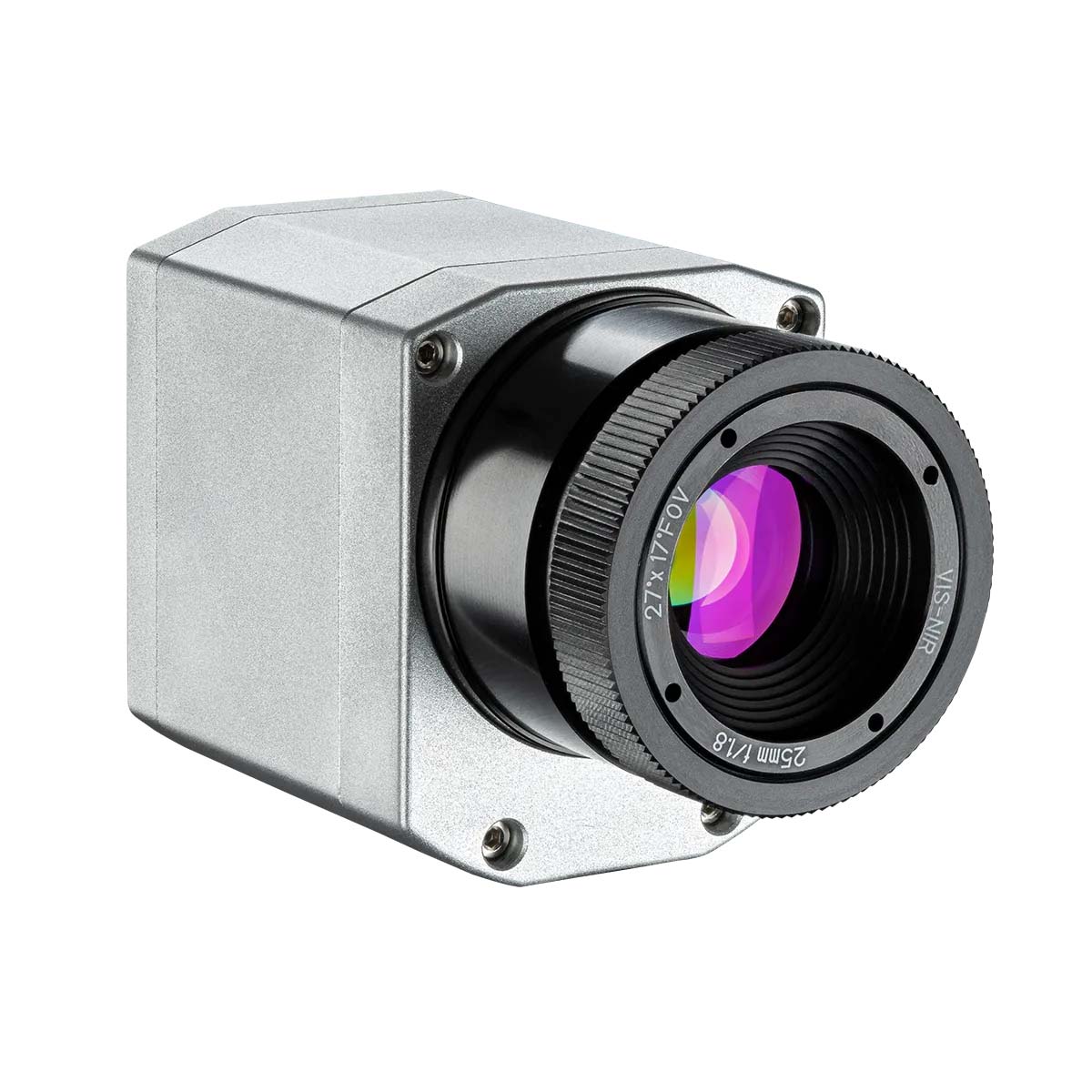

- Infrared Camera PI 05M
- USB cable 1 m (3.3 ft)
- Cable for output/input 1 m (3.3 ft) incl. terminal block
- Tripod
- Rugged outdoor transport case (IP67)
- Software package Optris PIX Connect
- PI Product Manual
Description

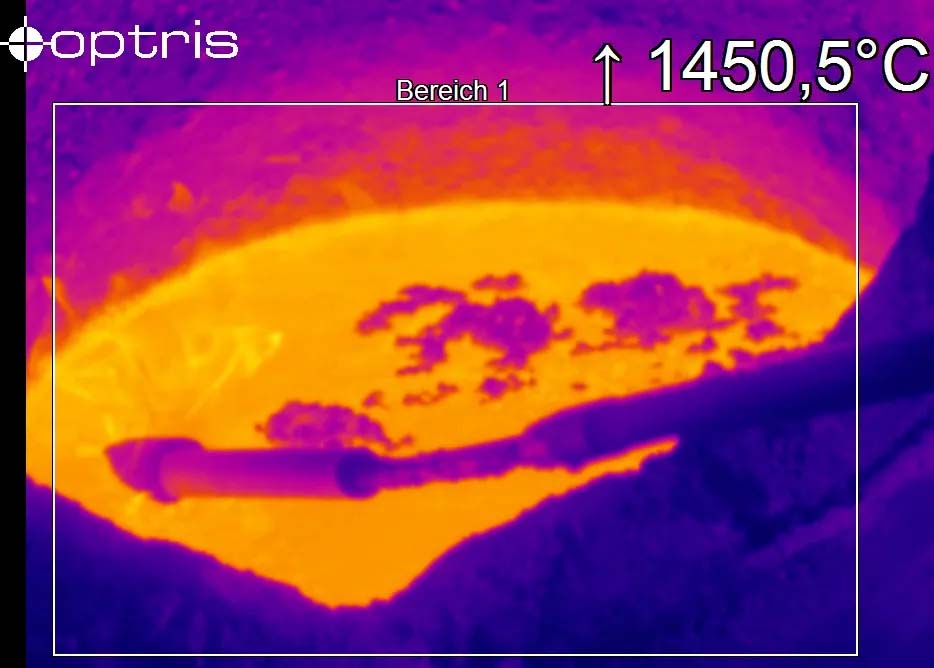

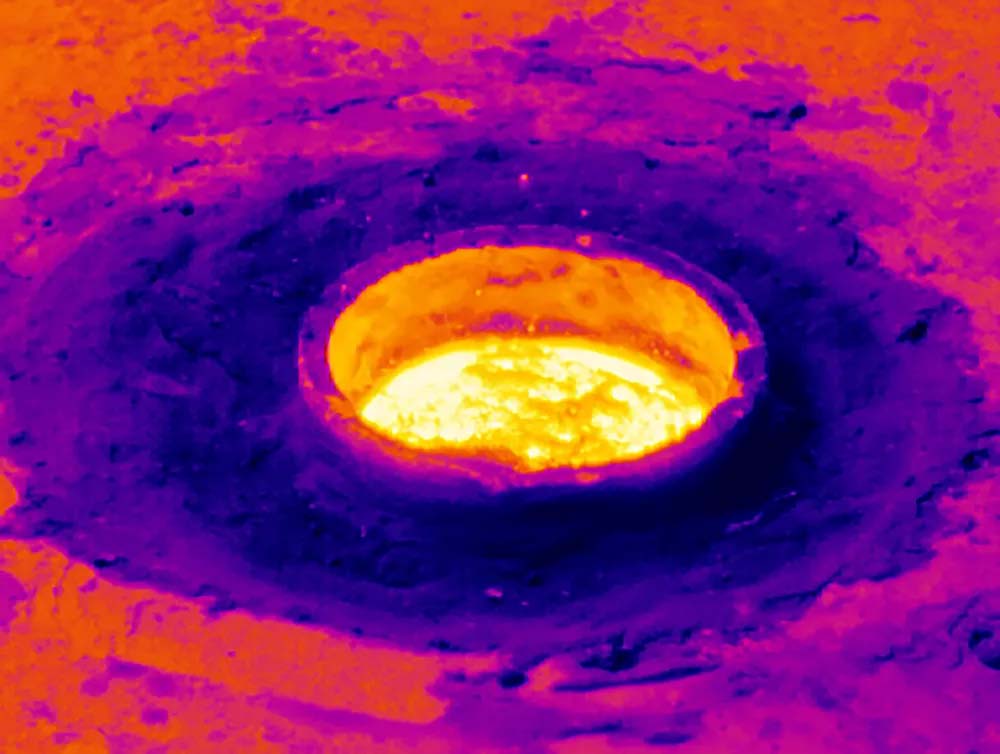

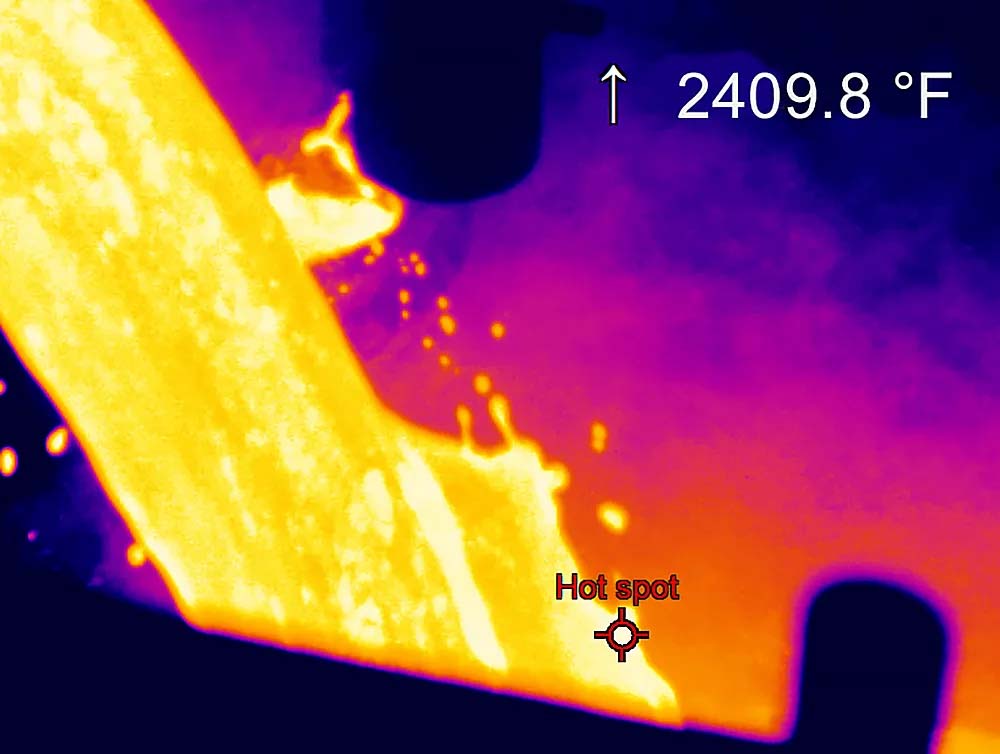

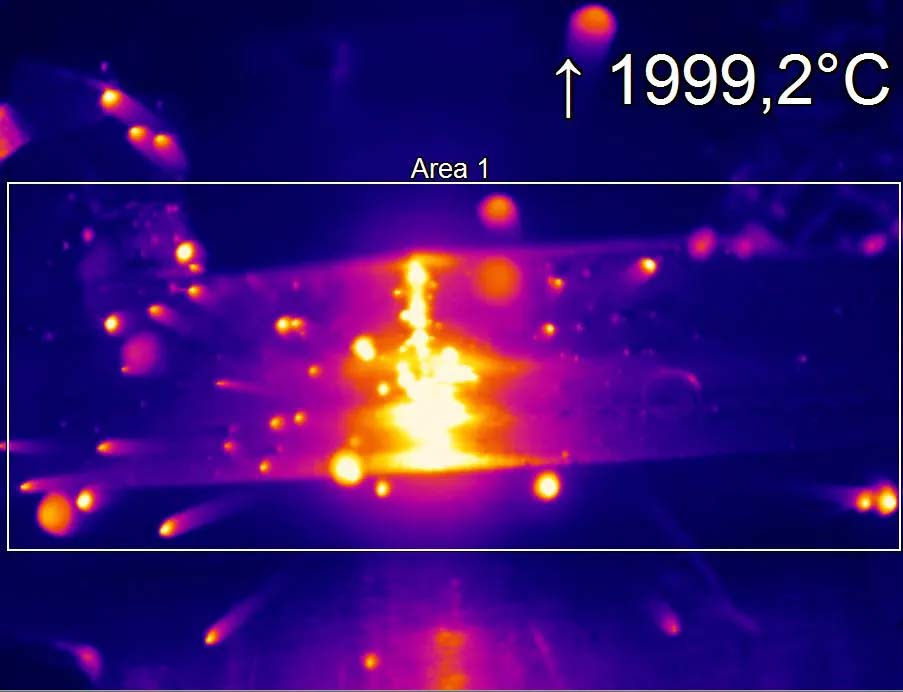

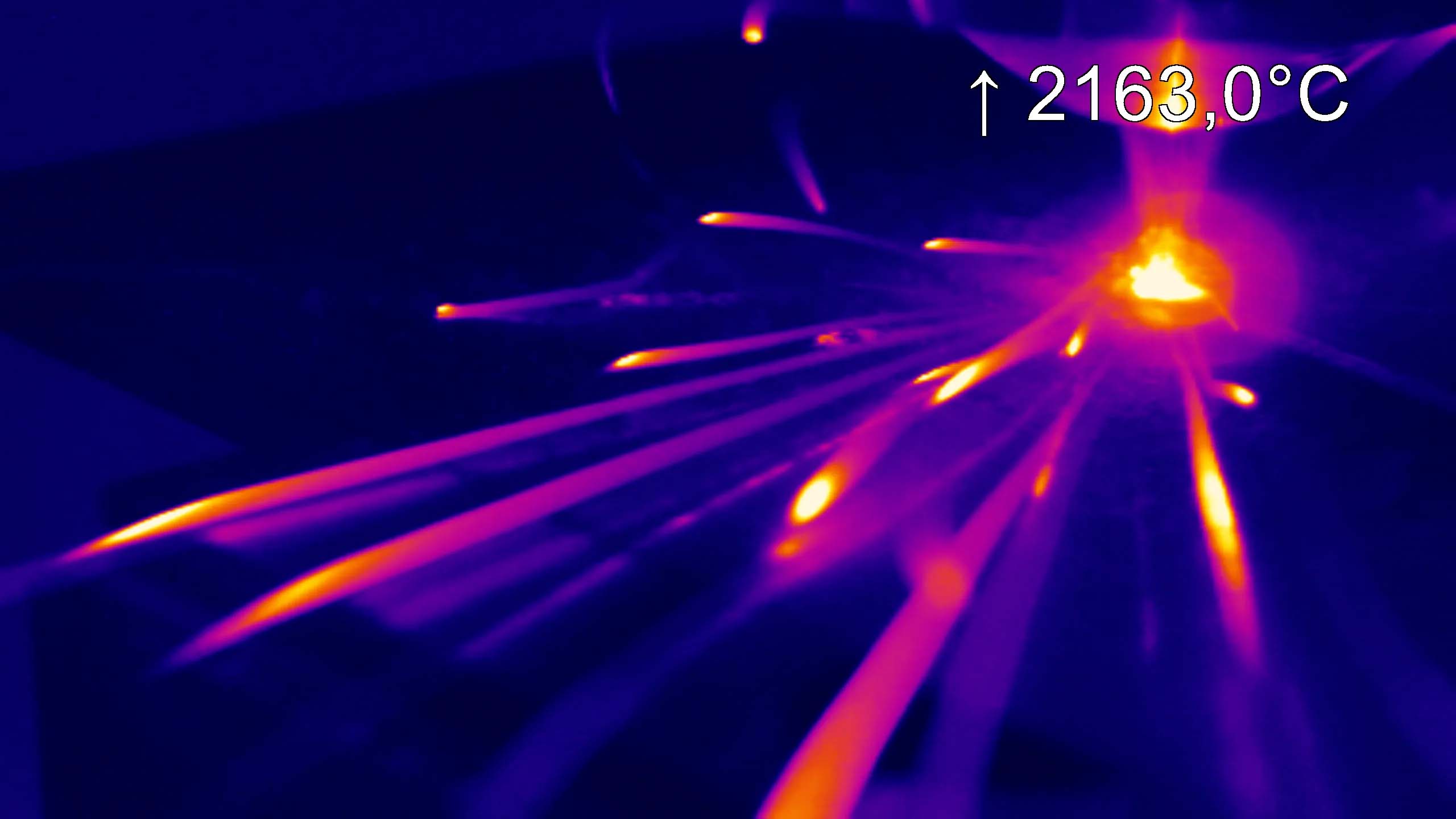

The Optris PI 05M is an ultra-short-wavelength thermal camera for molten metal alloys and NIR and CO₂ laser processes. The infrared camera operates at 0.50–0.54 μm, enabling accurate measurement of hot, reflective targets with higher emissivity and reduced reflection error compared to long-wave systems. The thermal imager ensures stable temperature data in demanding, high-energy environments. Its continuous 900–2450 °C range (1,652 °F to 4,442 °F) and high accuracy allow one thermal camera to address diverse industrial tasks.

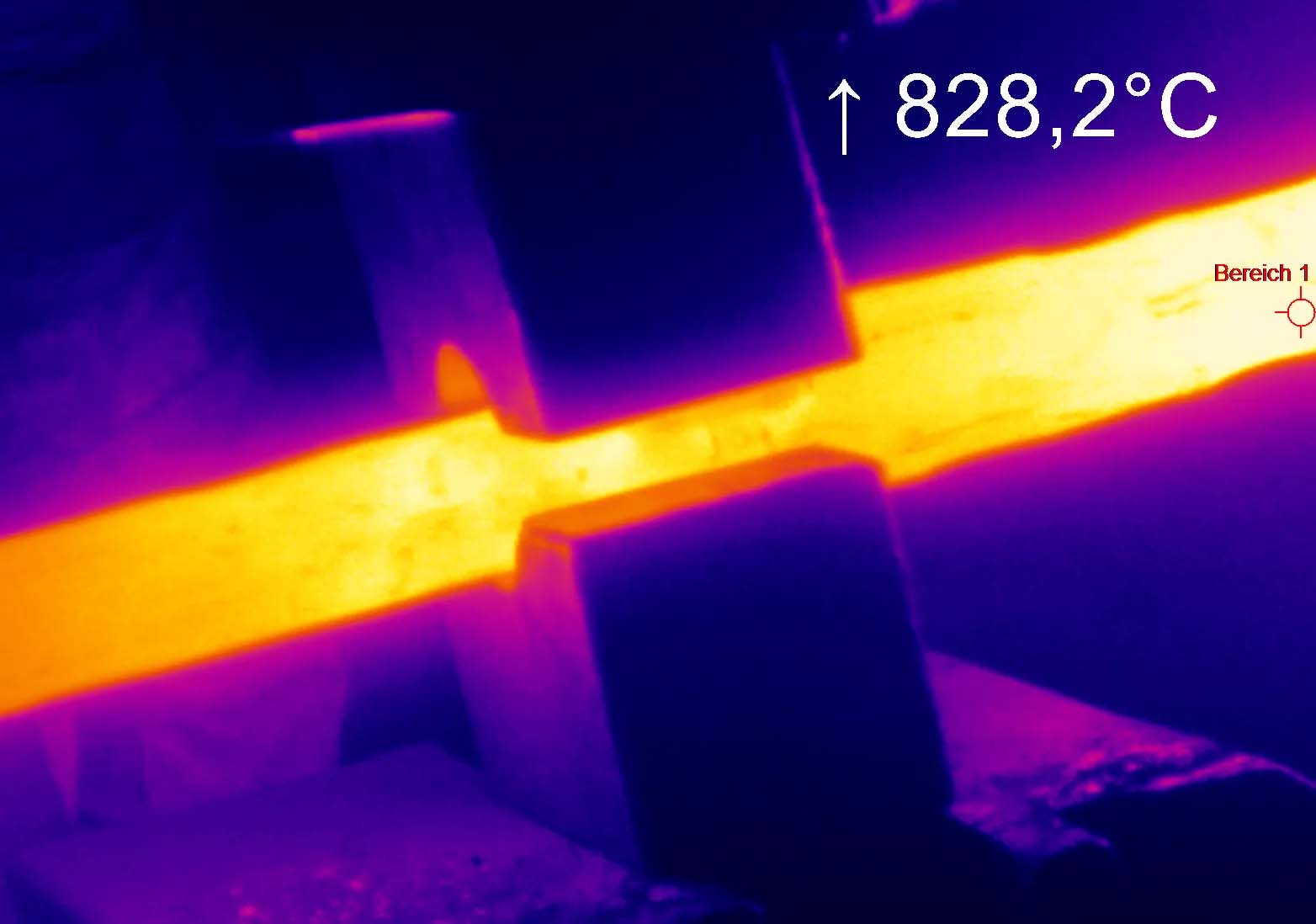

The PI 05M thermal camera for molten metal includes a 27° × 17° lens, so that it allows users to capture detailed thermal images and precise spot temperatures at practical distances. While non-reflective materials perform predictably in long-wave bands, metals do not, so that long-wavelength infrared sensors fail. This short-wavelength infrared camera aligns with the emissivity peak of most metals, improving measurement repeatability. At high temperatures, Planck’s law favors short wavelengths, increasing the emitted signal strength and reducing the impact of emissivity uncertainty. As a result, this thermal camera offers greater precision, accuracy, and repeatability than long-wavelength alternatives.
Flexible acquisition modes match process speed. At 764 × 480 pixels, the infrared camera records at 32 Hz, so that it keeps full-frame detail high. At 382 × 288 pixels it reaches 80 Hz, tracking fast motion without blur. For rapid transients, a 72 × 56 mode at 1 kHz captures millisecond events. A 764 × 8 sub-image line mode at 1 kHz supports line-scanner workflows for straightforward strip or seam monitoring.
The thermal camera connects via USB, so that works with PIX Connect software at no additional cost, so that users can perform line scanning, image merging, and radiometric analysis immediately. Developer kits are available so that integrators can embed the infrared camera into custom systems.
PI 05M Thermal Camera for Molten Metals
- High dynamic CMOS detector with up to 764 x 480 pixels resolution
- Spectral sensitivity around 0.5 µm – ideal for molten metals and laser processes
- Wide measurement ranges from 900°C to 2450 °C (1,652 °F to 4,442 °F) without sub-ranges
- Up to 1 kHz frame rate for fast processes
- Analog and digital outputs with 1ms response time
