ABFL-01 – Air filtering battery 20-5-0.1 micron
ABFL-01 – Air filtering battery 20-5-0.1 micron
Guaranteed safe & secure checkout
*We also accept ACH/wire transfer, checks, and purchase orders.

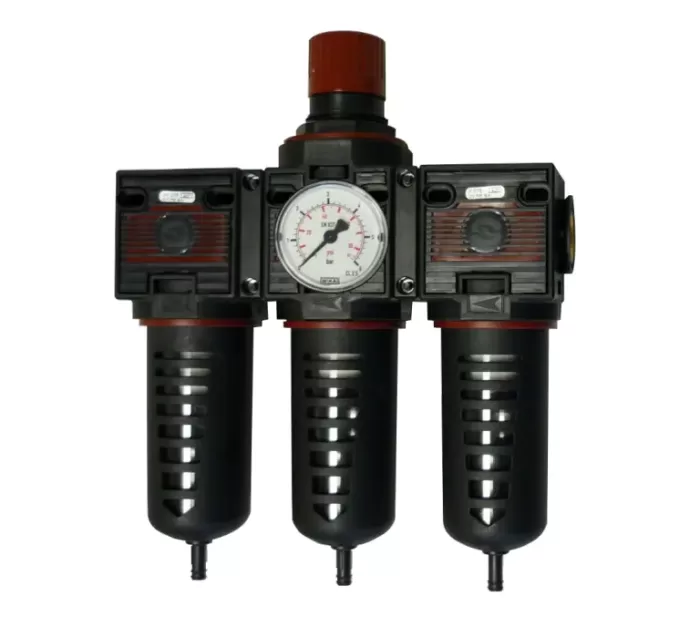

The air filtering battery ABFL-01 is used together with the air barrier front window flange in order to keep clean the housing’s front window, filtering the air from water and oil particles. The battery is composed by three filters (20, 5 and 0,1 micron) in series, a pressure regulator and a pressure gauge. The water and the oil filtered are collected in 100 cc bowls. The 0.1 micron filter is made up by a microfiber coalescent cartridge which allows a high filtration efficiency of 99,99% on 0,1 μm particles. The regulator filter can keep stable the set pressure regardless of upstream variations. The air filtering battery can easily be installed due to its mounting bracket. The filtering may be refilled with the microfiber cartridge suitable for the element.
Documentation
Specifications

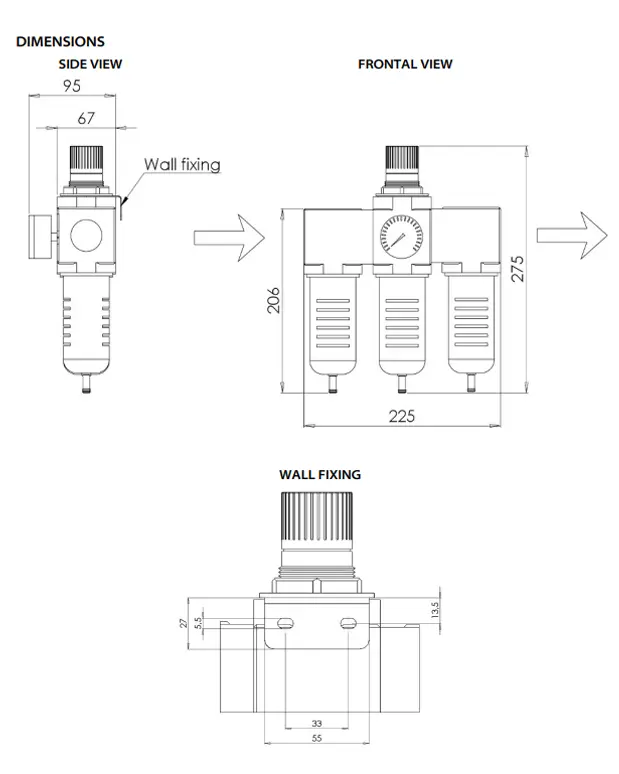

| Dimensions | 250 × 280 × 100 mm |
| Weight | 1.5 kg |
| Max input pressure | 6 atm |
| Gauge pressure range | 0–6 atm |
| Filters | 20 µm, 5 µm, and 0.1 µm |
| Input connector | 1/2” GAS |
| Output connector | 1/2” GAS (with 6 mm ext. diameter hose adaptor) |
| Temperature range | +5 °C to +50 °C |
Description
The air filtering battery ABFL-01 is used together with the air barrier front window flange in order to keep clean the housing’s front window, filtering the air from water and oil particles. The battery is composed by three filters (20, 5 and 0,1 micron) in series, a pressure regulator and a pressure gauge. The water and the oil filtered are collected in 100 cc bowls. The 0.1 micron filter is made up by a microfiber coalescent cartridge which allows a high filtration efficiency of 99,99% on 0,1 μm particles. The regulator filter can keep stable the set pressure regardless of upstream variations. The air filtering battery can easily be installed due to its mounting bracket. The filtering may be refilled with the microfiber cartridge suitable for the element.
