Your Guide to Smarter, Earlier Fire Detection with the Right Camera

When it comes to early fire detection, thermal cameras give you the most reliable visibility. In fact, detect heat long before smoke appears or alarms activate. However, only certain fixed mount thermal cameras are designed for nonstop monitoring, analytics, and integration with platforms like iTL. If you choose the right hardware, you get early warnings, real time alerts, and a strong layer of protection for your facility.

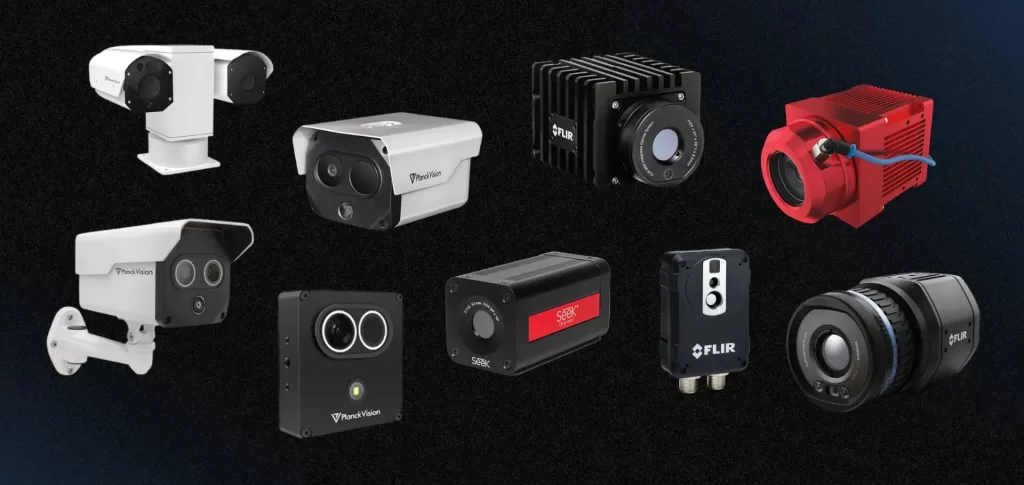

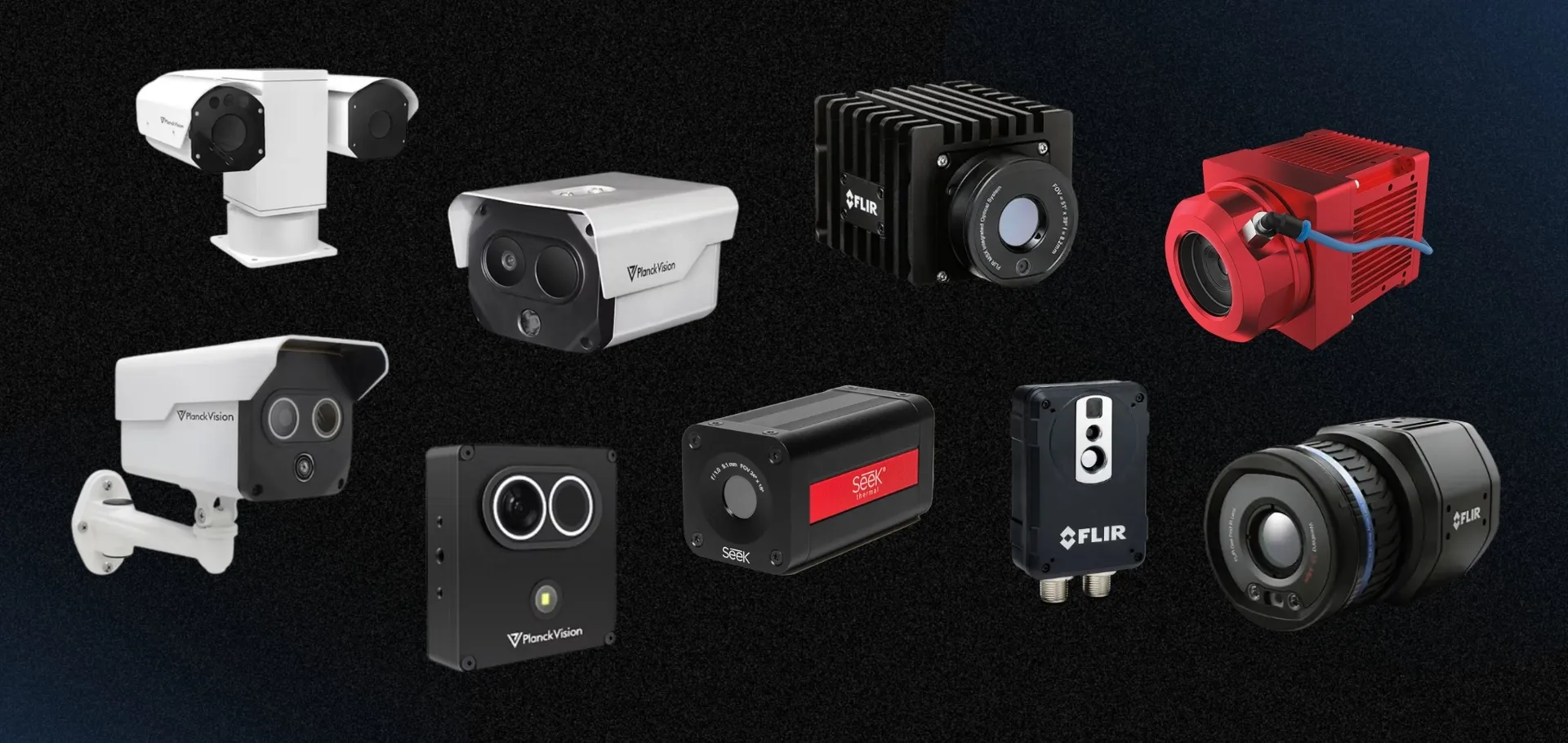

Below are the best compatible thermal cameras for early fire detection, including key technical specifications to help you understand how each model performs.

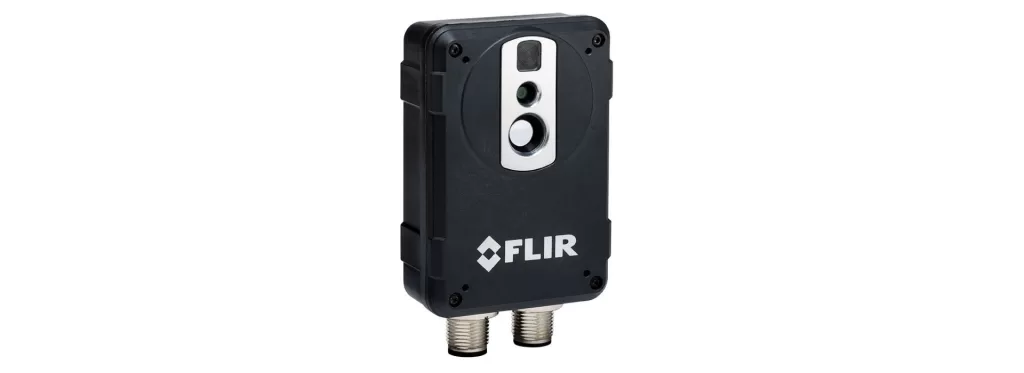

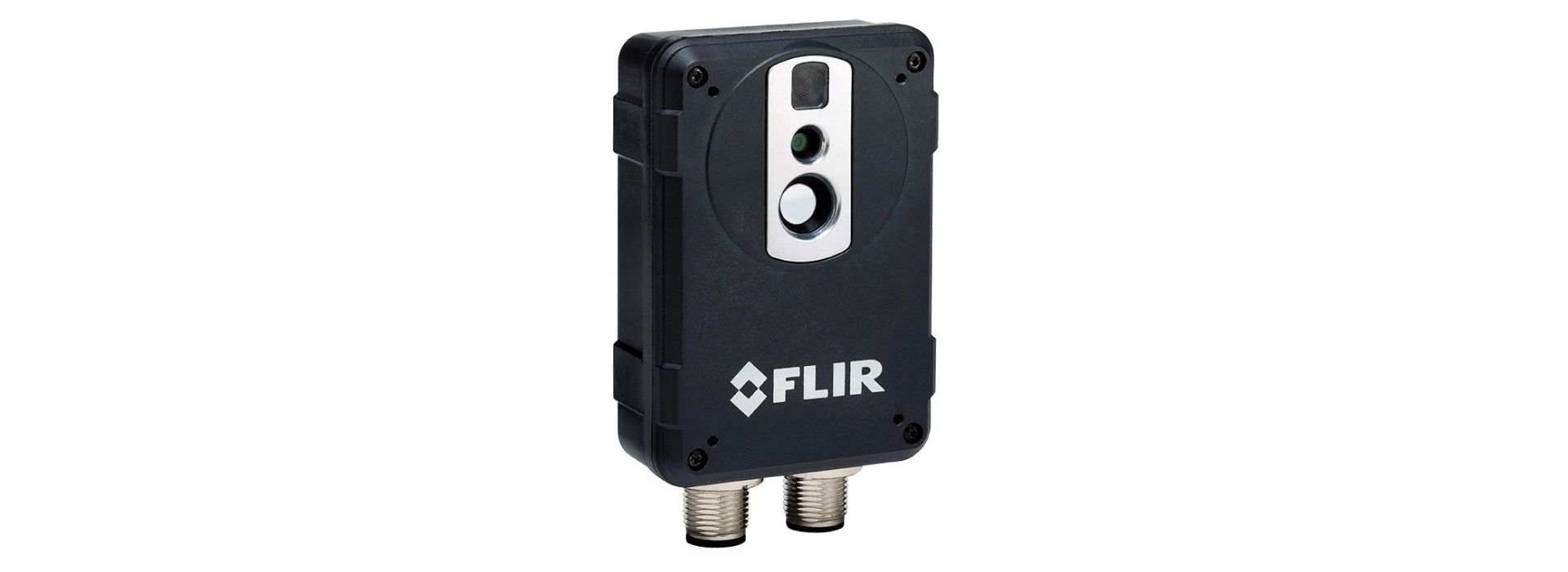

The Flir AX8 is a compact fixed mount thermal camera widely used in electrical rooms, battery stations, and indoor industrial environments. It is one of the most cost effective continuous monitoring cameras.

Key technical specs

• Thermal resolution: 80 × 60
• Image frequency: 9 Hz
• Temperature range: minus 10 °C to 150 °C
• Thermal sensitivity: < 0.10 °C
• Network: Ethernet, Modbus TCP
• Size: extremely compact for tight installations

Why it works well

• Ideal for smaller coverage areas
• Good for cabinets, chargers, and machinery
• Fully compatible with iTL for alerts, snapshots, and reporting

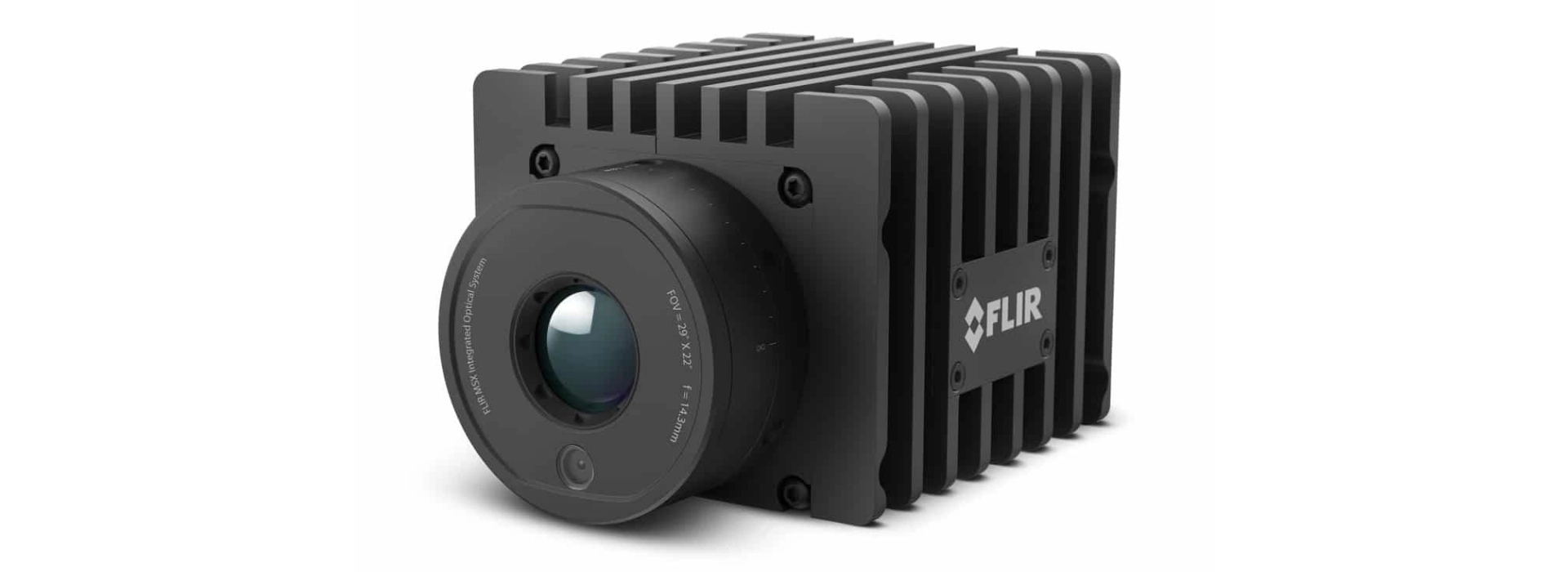

The Flir A40, A50, and A70 cameras offer higher resolution, more lens options, and better sensitivity. Therefore, these are strong choices for early fire detection because they provide clear images and stable temperature readings.

Flir A40 Smart Sensor

• Thermal resolution: 320 × 240
• Lenses: 29°, 51°, 95° options
• Temperature accuracy: ±2 °C
• Environmental rating: IP66
• Image frequency: 30 Hz variants available

Flir A50 and A70

• A50 resolution: 464 × 348
• A70 resolution: 640 × 480
• Sensitivity: as low as < 35 mK
• Multiple FOV options
• Designed for 24/7 automation

Why they work well

• Higher resolution means earlier detection of small hot spots
• Wide coverage options for conveyors, waste areas, and battery storage
• Rugged enough for tough industrial environments
• Clean network integration with iTL

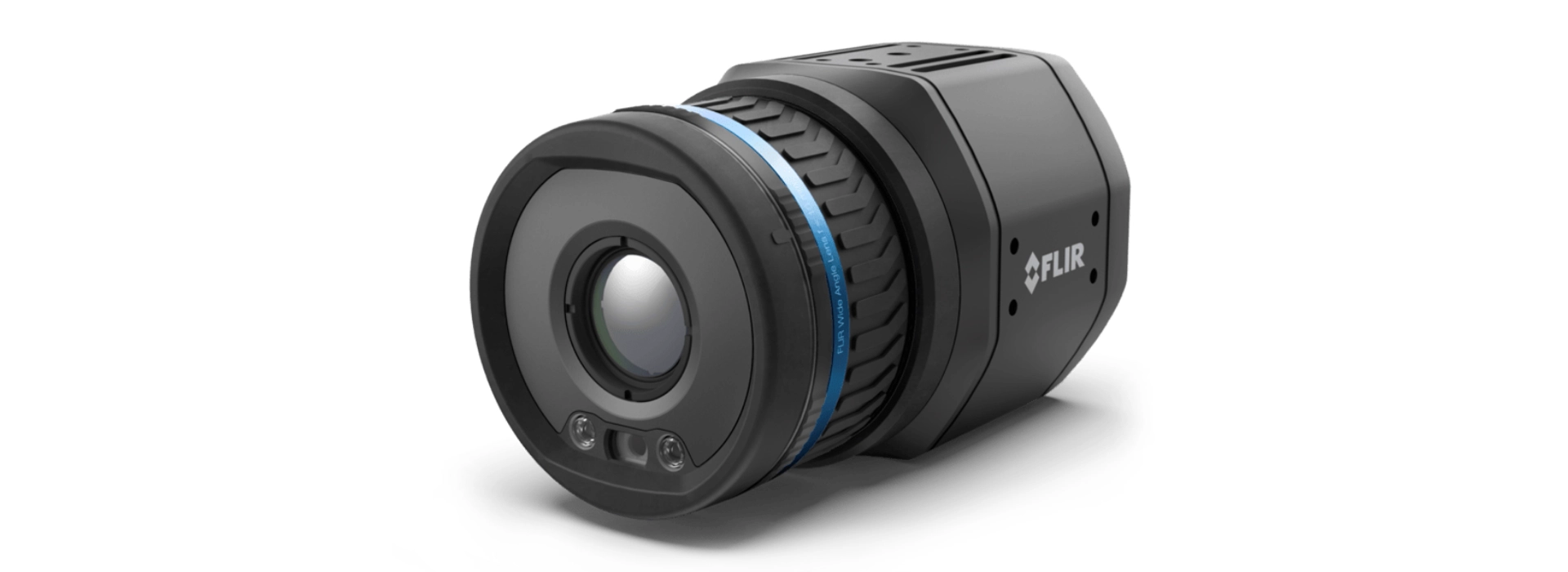

These are Flir’s higher end smart sensors, designed for process control and advanced thermal analytics. They offer excellent stability for high risk environments.

Flir A400

• 320 × 240 resolution
• Designed for precise industrial temperature measurement
• Flexible spot, box, and polygon analysis

Flir A500

• 464 × 348 resolution
• Designed for mid range detection
• High accuracy for early smoldering detection

Flir A700

• 640 × 480 high resolution
• Ideal for long range or large area monitoring
• Strongest performer for industrial early fire detection

Why they work well

• Very clear temperature data
• Strong performance outdoors or in dusty environments
• Perfect for facilities with high fire risk
• Integrates with iTL for multi camera monitoring and event reporting

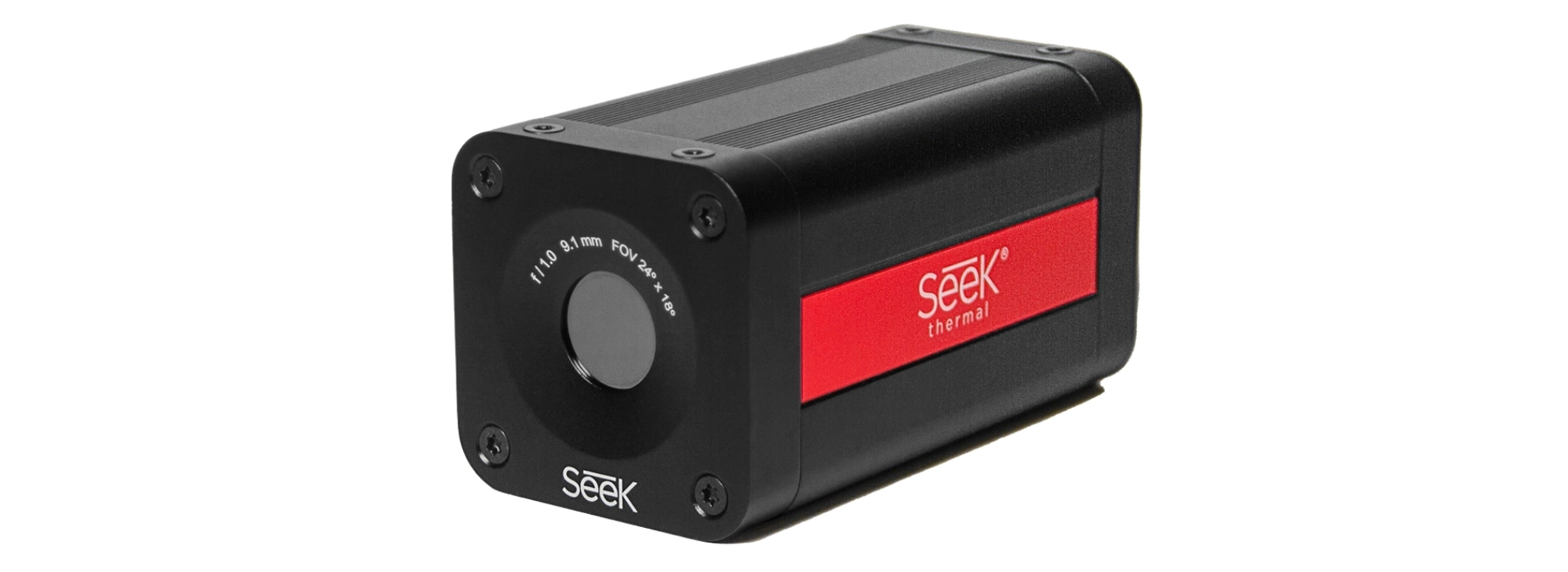

The Seek G300 is one of the most popular options for early fire detection because it combines good resolution with a rugged design at an affordable price.

Key technical specs

• Thermal resolution: 320 × 240
• Temperature range: minus 20 °C to 550 °C
• Environmental rating: IP67
• Network: PoE, ONVIF, RTSP
• Sensitivity: < 35 mK

Why it works well

• Built specifically for continuous monitoring
• Great for indoor areas, small yards, and conveyors
• Pairs with iTL for real time alarms, reports, and trending
• Excellent choice for facilities starting their fire detection journey

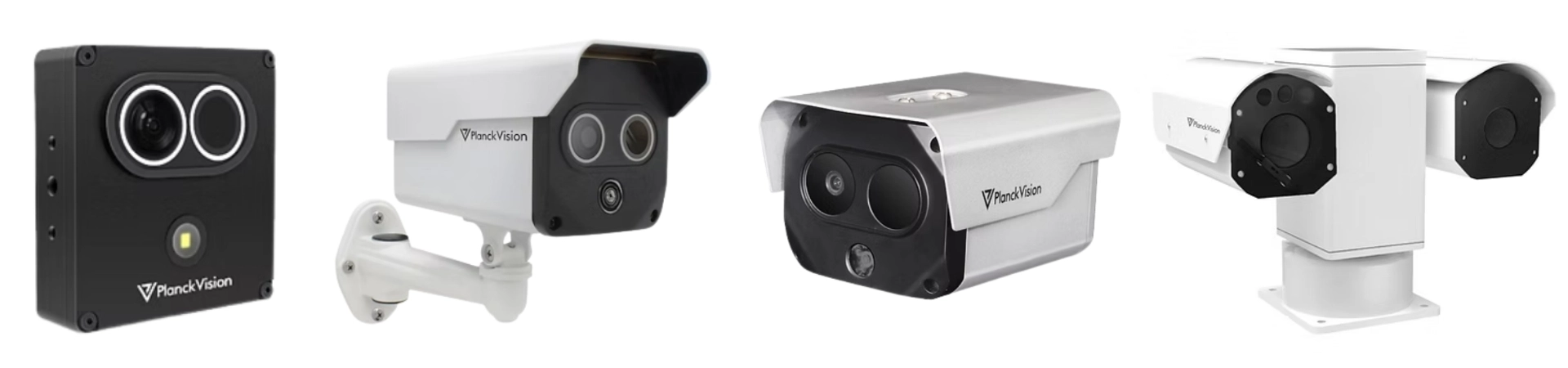

These dual spectrum cameras offer both thermal and visible imaging. They are strong options for facilities that want thermal detection plus visual confirmation.

Key technical specs

• Thermal resolutions from 256 × 192 up to 640 × 512
• Visible camera included
• Multiple lens options for short or long range use
• Rugged outdoor housing
• PT model includes pan and tilt for wide area coverage

Why they work well

• Good for yards, open spaces, and mixed lighting
• Visual layer helps teams verify events quickly
• Designed for outdoor environments
• Integrates smoothly with iTL for alerts and incident logging

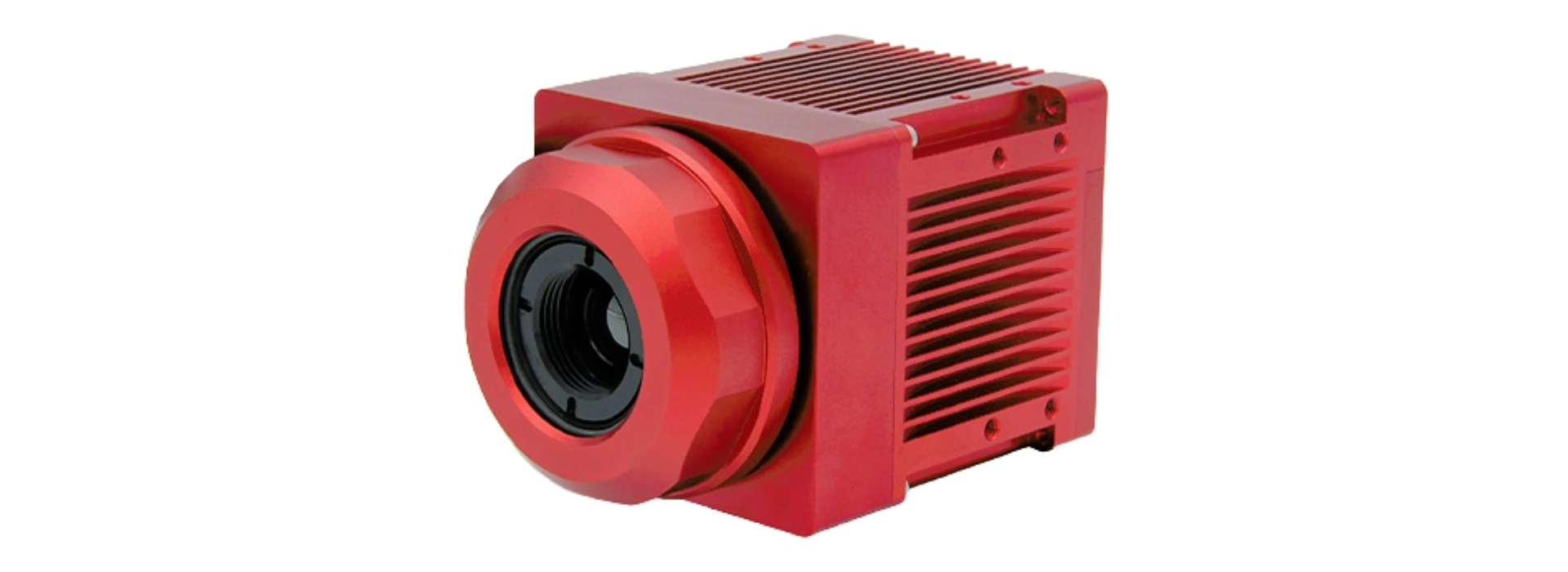

IRSX cameras are self contained smart thermal sensors that include onboard analytics.

Key technical specs

• Thermal resolutions from 336 × 256 to 640 × 512
• Built in processing for temperature analysis
• REST API and industrial protocols
• Rugged industrial housing
• Wide selection of FOV options

Why they work well

• Good balance between cost and performance
• Excellent for manufacturing floors or indoor risk zones
• Strong temperature accuracy
• Works cleanly with iTL for monitoring and reporting

Choosing the right thermal camera depends on your environment and risk profile.

1. Field of View
• Small equipment or cabinets: Flir AX8, Seek G300, Flir A50
• Medium areas: Flir A400, A500
• Large yards or long range: Flir A700, Plank TNC400PT

2. Resolution Requirements
Higher resolution allows you to detect smaller hot spots at greater distances.

• Good: 320 × 240 (Seek G300, A40, A400)
• Better: 464 × 348 (A50, A500)
• Best: 640 × 480 (A70, A700, TNC Series, IRSX high res)

3. Environmental Conditions

• Dusty and outdoor: A40, A70, A500, A700, Plank TNC
• Indoor industrial: AX8, G300, IRSX
• Harsh or corrosive: IP66 or IP67 models only

4. Integration and Analytics
For early fire detection, make sure the camera supports:

• Continuous temperature streaming
• Network protocols (Modbus TCP, MQTT, REST API, RTSP)
• Onboard or software analytics
• Compatibility with iTL

iTL adds:

• Real time SMS, voice, and email alerts
• Event snapshots and logs
• Automatic incident timelines
• Multi camera dashboards
• Long term trend graphs
• Insurance friendly reporting

In summary, early fire detection depends on two things: the right thermal camera and a monitoring system that ties everything together. Cameras alone do not solve the problem. You need a camera built for continuous thermal streaming and a platform like iTL that turns temperature data into alerts, reports, and clear visibility.

Whether you choose the Seek G300, a Flir A Series camera, the AX8, Plank TNC, or IRSX, having the right hardware allows iTL to deliver reliable early detection for your facility.
